Please send RFQ , we will respond immediately.

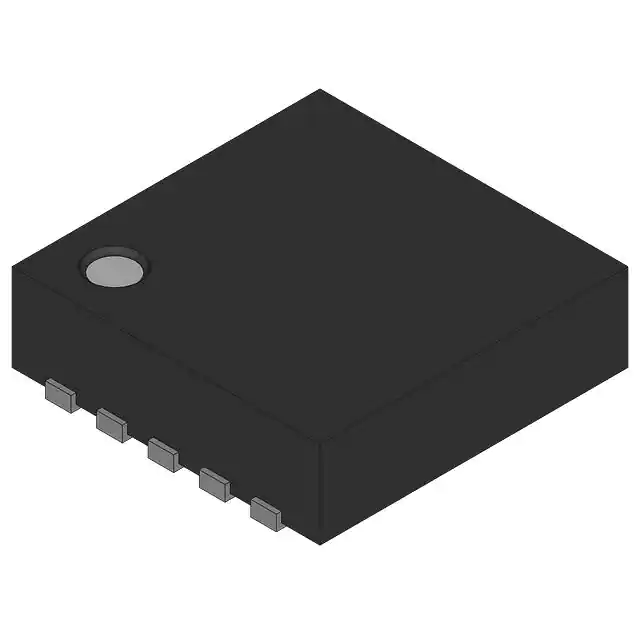

| Part Number | ISL6613IRZ-T | ISL6615IRZ-T | ISL6614IRZ-T | ISL6612IRZ-T | ISL6613AIRZ-T | ISL6613BIRZ-T | ISL6613CRZ-T | ISL6613IBZ-T | ISL6613IR-T |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Synchronous | Synchronous | Synchronous | Synchronous | Synchronous | Synchronous | Synchronous | Synchronous | Synchronous |
| Number of Drivers | 2 | 2 | 4 | 2 | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 10.8V ~ 13.2V | 6.8V ~ 13.2V | 10.8V ~ 13.2V | 10.8V ~ 13.2V | 10.8V ~ 13.2V | 7V ~ 13.2V | 10.8V ~ 13.2V | 10.8V ~ 13.2V | 10.8V ~ 13.2V |
| Logic Voltage - VIL, VIH | - | - | - | - | - | - | - | - | - |
| Current - Peak Output (Source, Sink) | 1.25A, 2A | 2.5A, 4A | 1.25A, 2A | 1.25A, 2A | 1.25A, 2A | 1.25A, 2A | 1.25A, 2A | 1.25A, 2A | 1.25A, 2A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V |
| Rise / Fall Time (Typ) | 26ns, 18ns | 13ns, 10ns | 26ns, 18ns | 26ns, 18ns | 26ns, 18ns | 26ns, 18ns | 26ns, 18ns | 26ns, 18ns | 26ns, 18ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 16-VQFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 8-SOIC (0.154", 3.90mm Width) | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) | 10-DFN (3x3) | 16-QFN (4x4) | 10-DFN (3x3) | 10-DFN (3x3) | 10-DFN (3x3) | 10-DFN (3x3) | 8-SOIC | 10-DFN (3x3) |
