Please send RFQ , we will respond immediately.

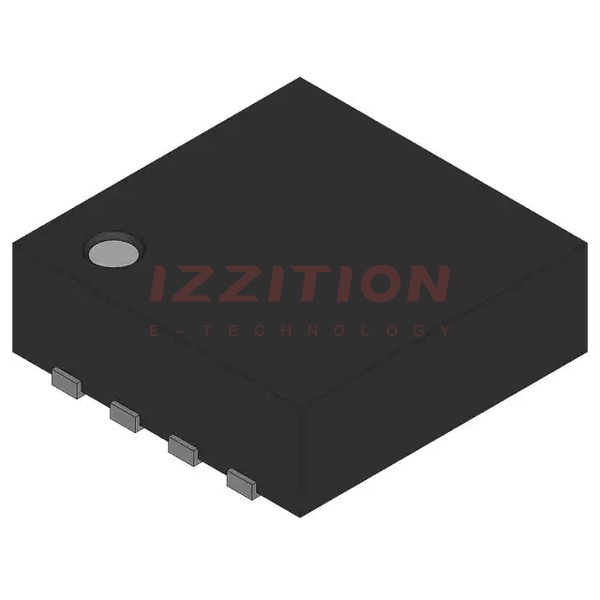

| Part Number | ISL6608CRZ | ISL6608IRZ | ISL6609CRZ | ISL6208CRZ | ISL6605CRZ | ISL6608CBZ | ISL6608CR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete | Active | Obsolete |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Synchronous | Synchronous | Synchronous | Synchronous | Synchronous | Synchronous | Synchronous |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | - | - | 1V, 2V | 0.5V, 2V | 1V, 2V | - | - |
| Current - Peak Output (Source, Sink) | 2A, 2A | 2A, 2A | -, 4A | 2A, 2A | 2A, 2A | 2A, 2A | 2A, 2A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 22 V | 22 V | 36 V | 33 V | 33 V | 22 V | 22 V |
| Rise / Fall Time (Typ) | 8ns, 8ns | 8ns, 8ns | 8ns, 8ns | 8ns, 8ns | 8ns, 8ns | 8ns, 8ns | 8ns, 8ns |
| Operating Temperature | 0°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) | -10°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad | 8-SOIC (0.154", 3.90mm Width) | 8-VQFN Exposed Pad |
| Supplier Device Package | 8-QFN (3x3) | 8-QFN (3x3) | 8-QFN (3x3) | 8-QFN (3x3) | 8-QFN (3x3) | 8-SOIC | 8-QFN (3x3) |
