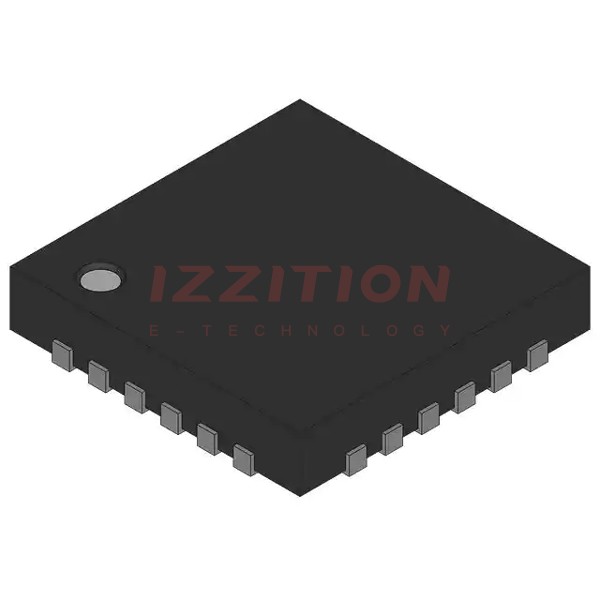

| Part Number | ISL6567CRZ | ISL6567IRZ | ISL6569CRZ |
|---|---|---|---|
| Manufacturer | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete |
| Output Type | Transistor Driver | Transistor Driver | PWM Signal |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Number of Outputs | 2 | 2 | 2 |
| Output Phases | 2 | 2 | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.9V ~ 5.5V | 4.9V ~ 5.5V | 4.75V ~ 5.25V |
| Frequency - Switching | 200kHz ~ 2MHz | 200kHz ~ 2MHz | 80kHz ~ 1MHz |
| Duty Cycle (Max) | 66% | 66% | 75% |
| Synchronous Rectifier | Yes | Yes | - |
| Clock Sync | No | No | No |
| Serial Interfaces | - | - | - |
| Control Features | Enable, Frequency Control, Soft Start | Enable, Frequency Control, Soft Start | Current Limit, Enable, Frequency Control, Power Good |
| Operating Temperature | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) | 24-QFN (4x4) | 32-QFN (5x5) |
