Please send RFQ , we will respond immediately.

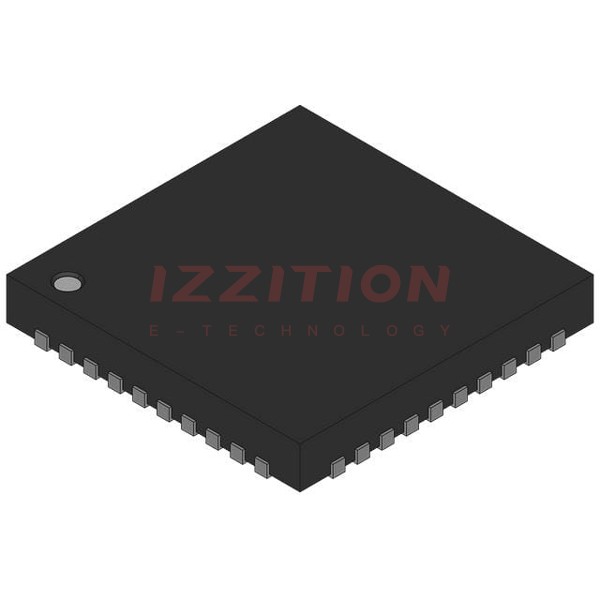

| Part Number | ISL6566IRZ | ISL6568IRZ | ISL6566IRZA | ISL6561IRZ | ISL6563IRZ | ISL6566AIRZ | ISL6566CRZ | ISL6566IR |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Renesas Electronics America Inc | Intersil | Intersil | Intersil | Renesas Electronics America Inc | Intersil |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Applications | Controller, Intel VRM9, VRM10, AMD Hammer Applications | Controller, Intel VRM9, VRM10, AMD Hammer Applications | Controller, Intel VRM9, VRM10, AMD Hammer Applications | Controller, Intel VR10X | Controller, Intel VRM9, VRM10, AMD Hammer Applications | Controller, Intel VRM9, VRM10, AMD Hammer Applications | Controller, Intel VRM9, VRM10, AMD Hammer Applications | Controller, Intel VRM9, VRM10, AMD Hammer Applications |
| Voltage - Input | 3V ~ 12V | 3V ~ 12V | 3V ~ 12V | 3V ~ 12V | 5V ~ 12V | 3V ~ 12V | 3V ~ 12V | 3V ~ 12V |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Output | 0.8V ~ 1.6V | 0.84V ~ 1.6V | 0.8V ~ 1.6V | 0.84V ~ 1.65V | 0.8V ~ 1.85V | 0.8V ~ 1.6V | 0.8V ~ 1.6V | 0.8V ~ 1.6V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (6x6) | 32-QFN (5x5) | 40-QFN (6x6) | 40-QFN (6x6) | 24-QFN (4x4) | 40-QFN (6x6) | 40-QFN (6x6) | 40-QFN (6x6) |
