Please send RFQ , we will respond immediately.

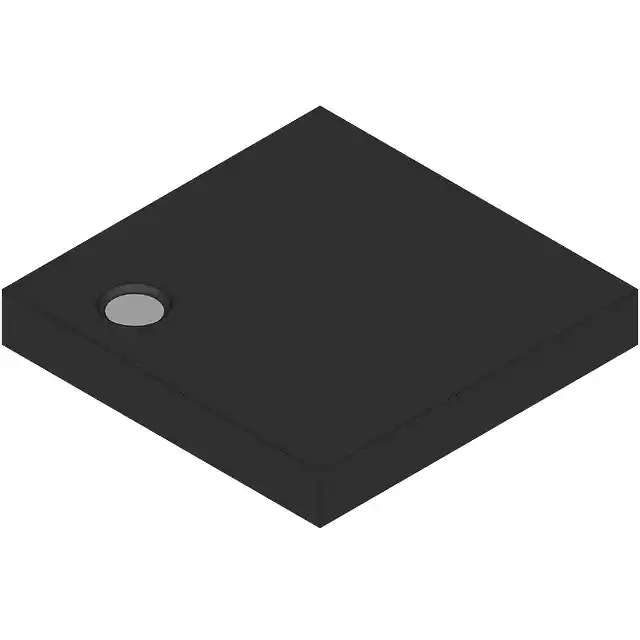

| Part Number | ISL6526CR | ISL6526IR | ISL6527CR | ISL6526CRZ | ISL6522CR | ISL6526ACR | ISL6526CB |
|---|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.97V ~ 3.63V | 2.97V ~ 3.63V | 2.97V ~ 3.63V | 2.97V ~ 3.63V | 10.8V ~ 13.2V | 2.97V ~ 3.63V | 2.97V ~ 3.63V |
| Frequency - Switching | 300kHz | 600kHz | 300kHz | 300kHz | 200kHz | 300kHz | 300kHz |
| Duty Cycle (Max) | 100% | 100% | 100% | 100% | 100% | 100% | 100% |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Clock Sync | No | No | No | No | No | No | No |
| Serial Interfaces | - | - | - | - | - | - | - |
| Control Features | Enable, Phase Control | Enable, Phase Control | Enable, Phase Control | Enable, Phase Control | Enable, Frequency Control, Phase Control, Soft Start | Enable, Phase Control | Enable, Phase Control |
| Operating Temperature | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QFN (5x5) | 16-QFN (5x5) | 16-QFN (5x5) | 16-QFN (5x5) | 16-QFN (5x5) | 16-QFN (5x5) | 14-SOIC |
