ISL6522BCRZ
  • Share:

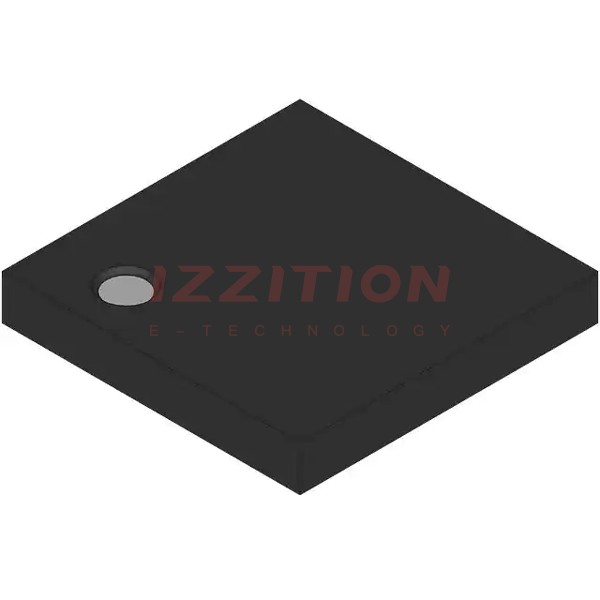

Intersil ISL6522BCRZ

Manufacturer No:
ISL6522BCRZ
Manufacturer:
Intersil
Package:
Tube
Datasheet:
ISL6522BCRZ Datasheet
ECAD Model:
-
Description:
SWITCHING CONTROLLER
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Type:Transistor Driver
Function:Step-Down
Output Configuration:Positive
Topology:Buck
Number of Outputs:1
Output Phases:1
Voltage - Supply (Vcc/Vdd):10.8V ~ 13.2V
Frequency - Switching:200kHz
Duty Cycle (Max):100%
Synchronous Rectifier:Yes
Clock Sync:No
Serial Interfaces:-
Control Features:Enable, Frequency Control, Phase Control, Soft Start
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Surface Mount
Package / Case:16-VQFN Exposed Pad
Supplier Device Package:16-QFN (5x5)
0 Remaining View Similar

In Stock

$2.92
301

Please send RFQ , we will respond immediately.

Similar Products

Part Number ISL6522BCRZ ISL6522CRZ   ISL6522BIRZ   ISL6522BCBZ   ISL6522BCR
Manufacturer Intersil Renesas Electronics America Inc Renesas Electronics America Inc Intersil Intersil
Product Status Obsolete Active Active Obsolete Obsolete
Output Type Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver
Function Step-Down Step-Down Step-Down Step-Down Step-Down
Output Configuration Positive Positive Positive Positive Positive
Topology Buck Buck Buck Buck Buck
Number of Outputs 1 1 1 1 1
Output Phases 1 1 1 1 1
Voltage - Supply (Vcc/Vdd) 10.8V ~ 13.2V 10.8V ~ 13.2V 10.8V ~ 13.2V 10.8V ~ 13.2V 10.8V ~ 13.2V
Frequency - Switching 200kHz 200kHz 200kHz 200kHz 200kHz
Duty Cycle (Max) 100% 100% 100% 100% 100%
Synchronous Rectifier Yes Yes Yes Yes Yes
Clock Sync No No No No No
Serial Interfaces - - - - -
Control Features Enable, Frequency Control, Phase Control, Soft Start Enable, Frequency Control, Phase Control, Soft Start Enable, Frequency Control, Phase Control, Soft Start Enable, Frequency Control, Phase Control, Soft Start Enable, Frequency Control, Phase Control, Soft Start
Operating Temperature 0°C ~ 70°C (TA) 0°C ~ 70°C (TA) -40°C ~ 85°C (TA) 0°C ~ 70°C (TA) 0°C ~ 70°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 16-VQFN Exposed Pad 16-VQFN Exposed Pad 16-VQFN Exposed Pad 14-SOIC (0.154", 3.90mm Width) 16-VQFN Exposed Pad
Supplier Device Package 16-QFN (5x5) 16-QFN (5x5) 16-QFN (5x5) 14-SOIC 16-QFN (5x5)
