Please send RFQ , we will respond immediately.

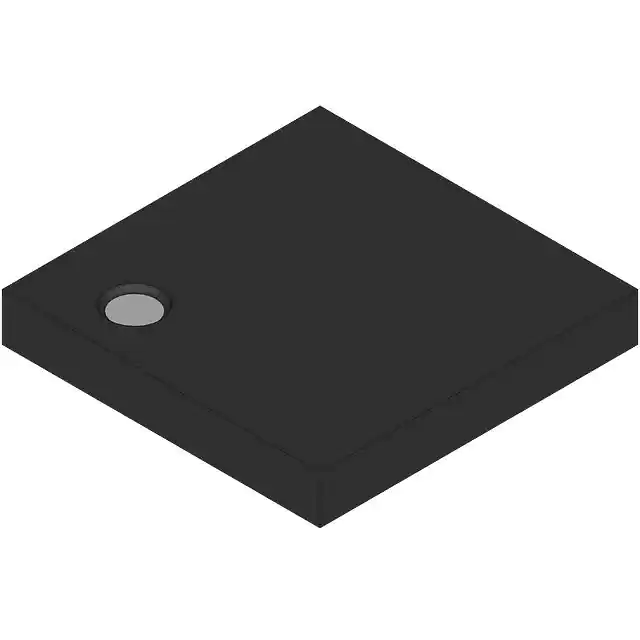

| Part Number | ISL6520IR-T | ISL6522IR-T | ISL6420IR-T | ISL6520AIR-T | ISL6520BIR-T | ISL6520CR-T | ISL6520IB-T |
|---|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | - |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | - |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | - |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | - |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Output Phases | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | 10.8V ~ 13.2V | 5.6V ~ 16V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | - |
| Frequency - Switching | 300kHz | 200kHz | 100kHz ~ 1.4MHz | 300kHz | 300kHz | 300kHz | - |
| Duty Cycle (Max) | 100% | 100% | 96% | 100% | 100% | 100% | - |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | - |
| Clock Sync | No | No | No | No | No | No | - |
| Serial Interfaces | - | - | - | - | - | - | - |
| Control Features | Phase Control | Enable, Frequency Control, Phase Control, Soft Start | Enable, Frequency Control, Phase Control, Power Good, Soft Start | Phase Control | Enable, Phase Control | Phase Control | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |
| Package / Case | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 20-VFQFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | - |
| Supplier Device Package | 16-QFN (4x4) | 16-QFN (5x5) | 20-QFN (4x4) | 16-QFN (4x4) | 16-QFN (4x4) | 16-QFN (4x4) | - |
