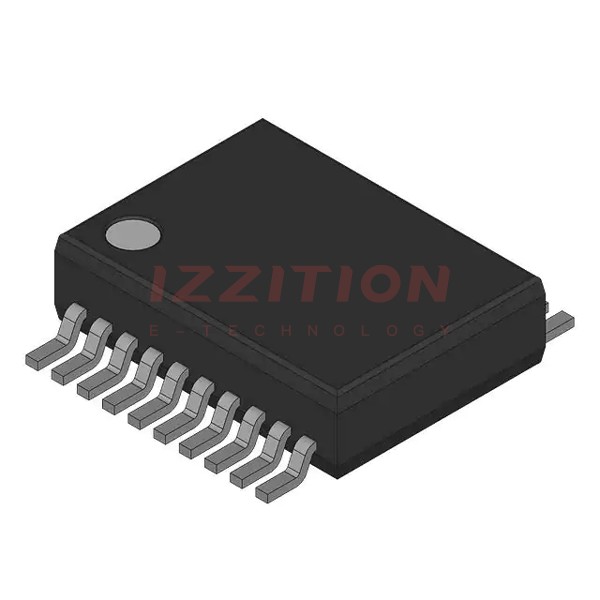

| Part Number | ISL6420IA | ISL6440IA | ISL6420IAZ | ISL6420IR |
|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Intersil | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Number of Outputs | 1 | 2 | 1 | 1 |
| Output Phases | 1 | 2 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 5.6V ~ 16V | 5.6V ~ 24V | 5.6V ~ 16V | 5.6V ~ 16V |
| Frequency - Switching | 100kHz ~ 1.4MHz | 300kHz | 100kHz ~ 1.4MHz | 100kHz ~ 1.4MHz |
| Duty Cycle (Max) | 96% | 93% | 96% | 96% |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Clock Sync | No | No | No | No |
| Serial Interfaces | - | - | - | - |
| Control Features | Enable, Frequency Control, Phase Control, Power Good, Soft Start | Enable, Phase Control, Power Good, Soft Start | Enable, Frequency Control, Phase Control, Power Good, Soft Start | Enable, Frequency Control, Phase Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) | 24-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-QSOP | 24-QSOP | 20-QSOP | 20-QFN (4x4) |
