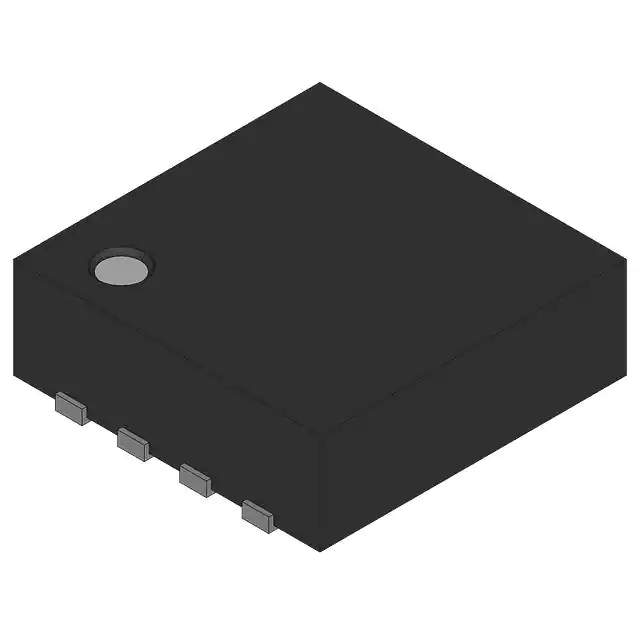

| Part Number | ISL6209CR | ISL6207CR | ISL6208CR | ISL6209CB |
|---|---|---|---|---|
| Manufacturer | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil |
| Product Status | Active | Obsolete | Obsolete | Obsolete |
| Driven Configuration | - | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | - | Synchronous | Synchronous | Synchronous |
| Number of Drivers | - | 2 | 2 | 2 |
| Gate Type | - | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | - | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | - | 1V, 2V | 0.5V, 2V | 1.8V, 3.1V |
| Current - Peak Output (Source, Sink) | - | 2A, 2A | 2A, 2A | 2A, 2A |
| Input Type | - | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | 36 V | 33 V | 33 V |
| Rise / Fall Time (Typ) | - | 8ns, 8ns | 8ns, 8ns | 8ns, 8ns |
| Operating Temperature | - | -10°C ~ 125°C (TJ) | -10°C ~ 125°C (TJ) | -10°C ~ 125°C (TJ) |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | 8-VQFN Exposed Pad | 8-VQFN Exposed Pad | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | - | 8-QFN (3x3) | 8-QFN (3x3) | 8-SOIC |
