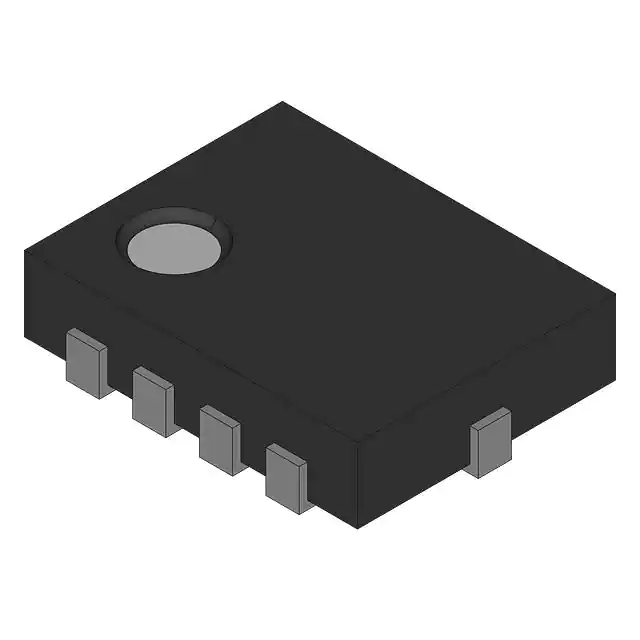

| Part Number | ISL54401IRUZ-T | ISL54402IRUZ-T | ISL54405IRUZ-T | ISL54409IRUZ-T | ISL54406IRUZ-T | ISL54401IRZ-T | ISL54400IRUZ-T |
|---|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil |
| Product Status | Obsolete | Obsolete | Active | Active | Active | Obsolete | Obsolete |
| Applications | Audio, USB | Audio, USB | Audio | Audio, USB | Audio | Audio, USB | Audio, USB |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 | 1:1 | 1:1 | 2:1 | 2:1 |
| Switch Circuit | SPDT | SPDT | SPDT | SPST | SPST | SPDT | SPDT |
| Number of Channels | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| On-State Resistance (Max) | 6Ohm (USB) | 9Ohm (USB) | 1.9Ohm | 2.8Ohm | 2.8Ohm | 6Ohm (USB) | 6Ohm (USB) |
| Voltage - Supply, Single (V+) | 2.5V ~ 3.6V | 1.8V ~ 5.5V | 3.3V, 5V | 2.7V ~ 5V | 2.7V ~ 5V | 2.5V ~ 3.6V | 2.5V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - | - | - |
| -3db Bandwidth | 394MHz (Audio), 239MHz (USB) | 394MHz (Audio), 239MHz (USB) | 230MHz | - | - | 394MHz (Audio), 239MHz (USB) | 394MHz (Audio), 239MHz (USB) |
| Features | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 | Break-Before-Make, Depop | Depop, USB 2.0 | Depop | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-UFQFN | 10-UFQFN | 16-UFQFN | 10-UFQFN | 10-UFQFN | 10-VFDFN Exposed Pad | 10-UFQFN |
| Supplier Device Package | 10-UTQFN (2.1x1.6) | 10-UTQFN (2.1x1.6) | 16-UTQFN (2.6x1.8) | 10-UTQFN (1.8x1.4) | 10-UTQFN (1.8x1.4) | 10-TDFN (3x3) | 10-UTQFN (2.1x1.6) |
