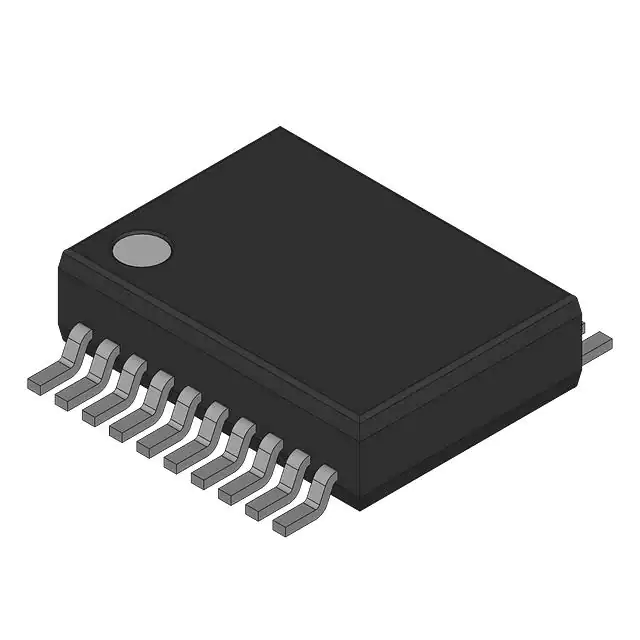

| Part Number | ISL43240IA | ISL43240IAZ | ISL43240IR |
|---|---|---|---|
| Manufacturer | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete |
| Switch Circuit | SPDT | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 |
| Number of Circuits | 4 | 4 | 4 |
| On-State Resistance (Max) | 25Ohm | 25Ohm | 25Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm | 500mOhm | 500mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V | 2.7V ~ 12V | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V | ±2V ~ 6V | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 65ns, 50ns | 65ns, 50ns | 65ns, 50ns |
| -3db Bandwidth | - | - | - |
| Charge Injection | 5pC (Max) | 5pC (Max) | 5pC (Max) |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 10pF | 10pF, 10pF | 10pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 200pA | 200pA | 200pA |
| Crosstalk | -92dB @ 1MHz | -92dB @ 1MHz | -92dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-SSOP | 20-SSOP | 20-QFN (4x4) |
