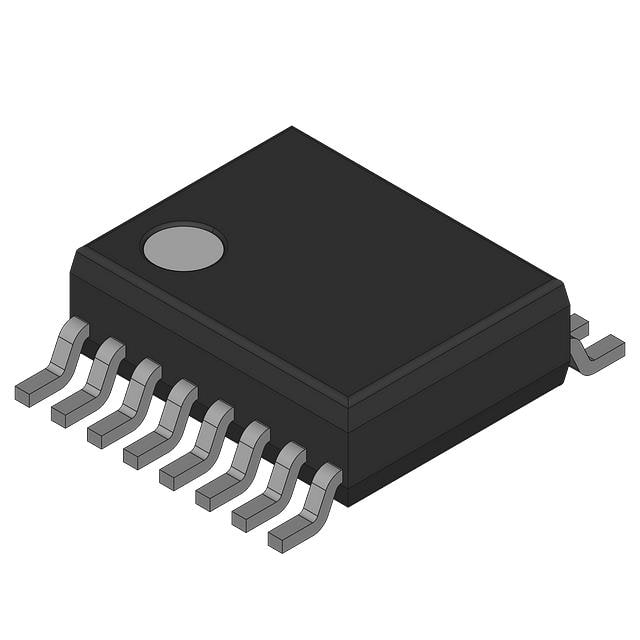

| Part Number | ISL28278FAZ-T7 | ISL28278FAZ-TZ | ISL28478FAZ-T7 | ISL28271FAZ-T7 | ISL28272FAZ-T7 | ISL28273FAZ-T7 | ISL28274FAZ-T7 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Amplifier Type | General Purpose | General Purpose | General Purpose | Instrumentation | Instrumentation | Instrumentation | Instrumentation |
| Number of Circuits | 2 | 2 | 4 | 2 | 2 | 2 | 2 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 0.15V/µs | 0.15V/µs | 0.15V/µs | 0.5V/µs | 0.5V/µs | 0.6V/µs | 0.5V/µs |
| Gain Bandwidth Product | 300 kHz | 300 kHz | 300 kHz | - | - | - | 6 MHz |
| -3db Bandwidth | - | - | - | 180 kHz | 100 kHz | 265 kHz | - |
| Current - Input Bias | 10 pA | 10 pA | 10 pA | 10 pA | 10 pA | 1 nA | 10 pA |
| Voltage - Input Offset | 0.2 µV | 0.2 µV | 0.2 µV | 35 µV | 35 µV | 12 µV | 35 µV |
| Current - Supply | 120µA (x2 Channels) | 120µA (x2 Channels) | 240µA (x4 Channels) | 120µA | 120µA | 120µA | 120µA (x2 Channels) |
| Current - Output / Channel | 31 mA | 31 mA | 31 mA | 31 mA | 31 mA | 29 mA | 31 mA |
| Voltage - Supply Span (Min) | 2.4 V | 2.4 V | 2.4 V | 2.4 V | 2.4 V | 2.4 V | 2.4 V |
| Voltage - Supply Span (Max) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) | 16-SSOP (0.154", 3.90mm Width) | 16-SSOP (0.154", 3.90mm Width) | 16-SSOP (0.154", 3.90mm Width) | 16-SSOP (0.154", 3.90mm Width) | 16-SSOP (0.154", 3.90mm Width) | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP | 16-QSOP | 16-QSOP | 16-QSOP | 16-QSOP | 16-QSOP | 16-QSOP |
