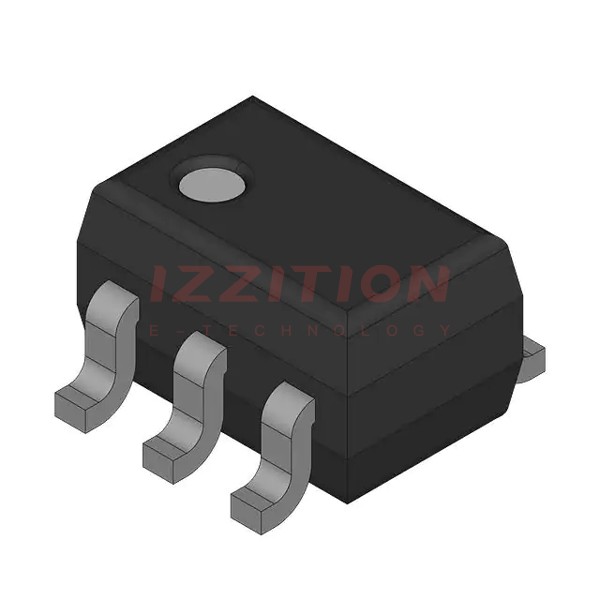

| Part Number | ILC7011AIC525X | ILC7011AIC5285X | ILC7011AIC527X | ILC7011AIC529X | ILC7011AIC528X | ILC7010AIC525X |
|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 6.5V | 6.85V | 6.7V | 10V | 10V | 6.5V |
| Voltage - Output (Min/Fixed) | 2.5V | 2.85V | 2.7V | 2.9V | 2.8V | 2.5V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | - | 0.25V @ 80mA | - | 0.25V @ 80mA | - | - |
| Current - Output | 80mA | 80mA | 80mA | 80mA | 80mA | 80mA |
| Current - Quiescent (Iq) | 90 µA | 90 µA | 90 µA | 90 µA | 90 µA | 90 µA |
| Current - Supply (Max) | 110 µA | 110 µA | 110 µA | 110 µA | 110 µA | 110 µA |
| PSRR | 65dB (120Hz) | 65dB (120Hz) | 65dB (120Hz) | 65dB (120Hz) | 65dB (120Hz) | 65dB (120Hz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Temperature | Over Temperature | Over Temperature | Over Temperature | Over Temperature | Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 | SC-70-5 |
