Please send RFQ , we will respond immediately.

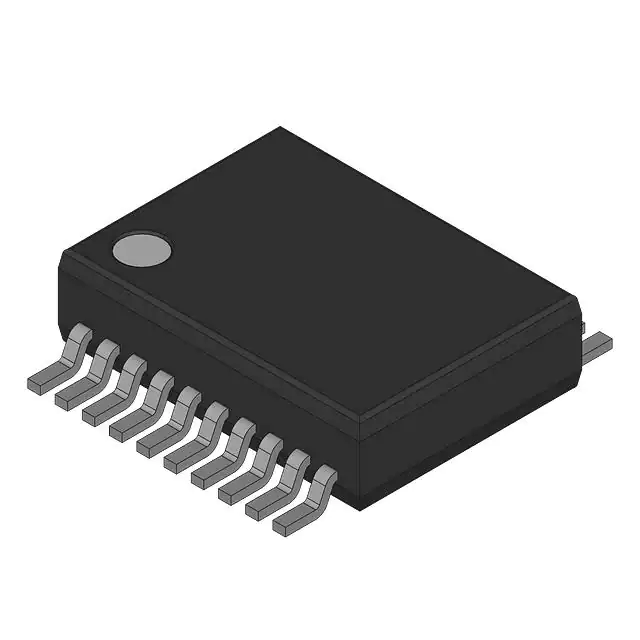

| Part Number | ICL3223ECA | ICL3223ECP | ICL3224ECA | ICL3227ECA | ICL3226ECA | ICL3223ECV | ICL3223EIA | ICL3225ECA | ICL3223ECAZ | ICL3221ECA | ICL3222ECA | ICL3223CA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Intersil | Intersil | Intersil | Intersil | Intersil | Intersil | Renesas Electronics America Inc | Intersil | Intersil | Intersil |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Transceiver | - | - | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver |
| Protocol | RS232 | - | - | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 |
| Number of Drivers/Receivers | 2/2 | - | - | 1/1 | 1/1 | 2/2 | 2/2 | 2/2 | 2/2 | 1/1 | 2/2 | 2/2 |
| Duplex | Full | - | - | Full | Full | Full | Full | Full | Full | Full | Full | Full |
| Receiver Hysteresis | 500 mV | - | - | 500 mV | 500 mV | 500 mV | 500 mV | 500 mV | 500 mV | 500 mV | 500 mV | 300 mV |
| Data Rate | 250kbps | - | - | 1Mbps | 250kbps | 250kbps | 250kbps | 250kbps | 250kbps | 250kbps | 250kbps | 250kbps |
| Voltage - Supply | 3V ~ 5.5V | - | - | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C | - | - | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | - | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) | - | - | 16-SSOP (0.209", 5.30mm Width) | 16-SSOP (0.209", 5.30mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) | 16-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP | - | - | 16-SSOP | 16-SSOP | 20-TSSOP | 20-SSOP | 20-SSOP | 20-SSOP | 16-SSOP | 20-SSOP | 20-SSOP |
