| Part Number | HUF75307T3ST | HUF75309T3ST | HUF75307D3ST |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | Harris Corporation |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V | 55 V | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 2.6A (Ta) | 3A (Ta) | 15A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | - |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 2.6A, 10V | 70mOhm @ 3A, 10V | 90mOhm @ 13A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 20 V | 23 nC @ 20 V | 20 nC @ 20 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 250 pF @ 25 V | 352 pF @ 25 V | 250 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1.1W (Ta) | 1.1W (Ta) | 45W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

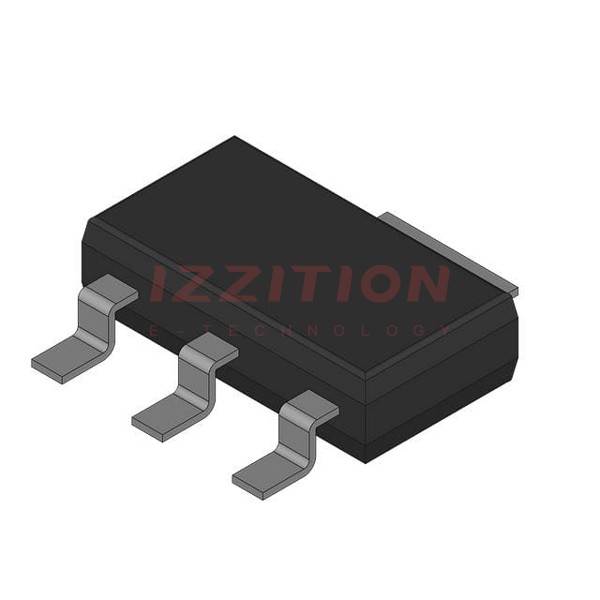

| Supplier Device Package | SOT-223-4 | SOT-223-4 | TO-252, (D-Pak) |
| Package / Case | TO-261-4, TO-261AA | TO-261-4, TO-261AA | TO-252-3, DPak (2 Leads + Tab), SC-63 |
