HMA124R1
  • Share:

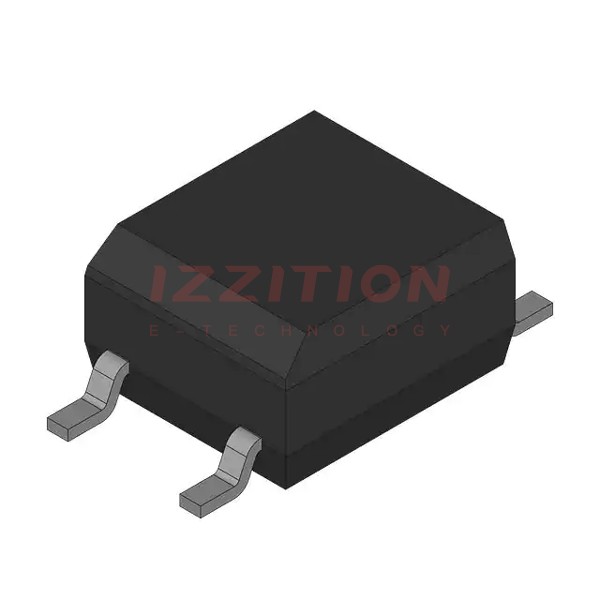

Fairchild Semiconductor HMA124R1

Manufacturer No:
HMA124R1
Manufacturer:
Fairchild Semiconductor
Package:
Bulk
Datasheet:
HMA124R1 Datasheet
ECAD Model:
-
Description:
TRANSISTOR OUTPUT OPTOCOUPLER
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):100% @ 1mA
Current Transfer Ratio (Max):1200% @ 1mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):3µs, 3µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:80mA
Voltage - Forward (Vf) (Typ):1.3V (Max)
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):400mV
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SMD
0 Remaining View Similar

In Stock

$0.09
5,873

Please send RFQ , we will respond immediately.
