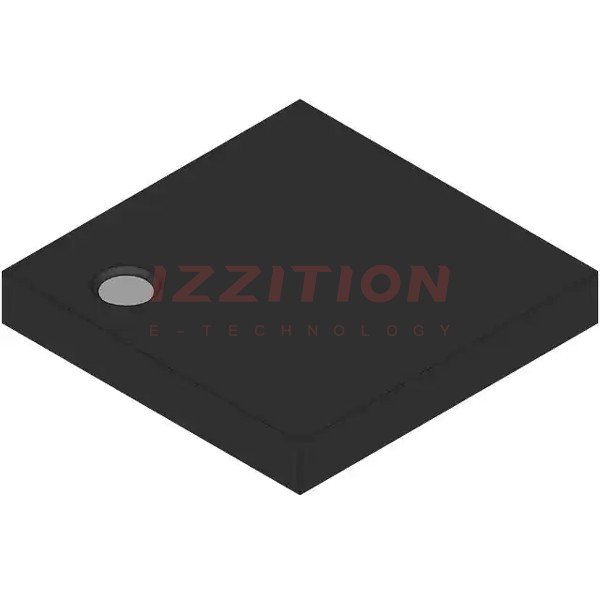

| Part Number | HIP2100IR | HIP2100IR4 | HIP2101IR | HIP2100IRZ | HIP2100IRT | HIP2100IB |
|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent | Independent | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 14V | 9V ~ 14V | 9V ~ 14V | 9V ~ 14V | 9V ~ 14V | 9V ~ 14V |
| Logic Voltage - VIL, VIH | 4V, 7V | 4V, 7V | 0.8V, 2.2V | 4V, 7V | 4V, 7V | 4V, 7V |
| Current - Peak Output (Source, Sink) | 2A, 2A | 2A, 2A | 2A, 2A | 2A, 2A | 2A, 2A | 2A, 2A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 114 V | 114 V | 114 V | 114 V | 114 V | 114 V |
| Rise / Fall Time (Typ) | 10ns, 10ns | 10ns, 10ns | 10ns, 10ns | 10ns, 10ns | 10ns, 10ns | 10ns, 10ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad | 12-VFDFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QFN (5x5) | 12-DFN (4x4) | 16-QFN (5x5) | 16-QFN (5x5) | 16-QFN (5x5) | 8-SOIC |
