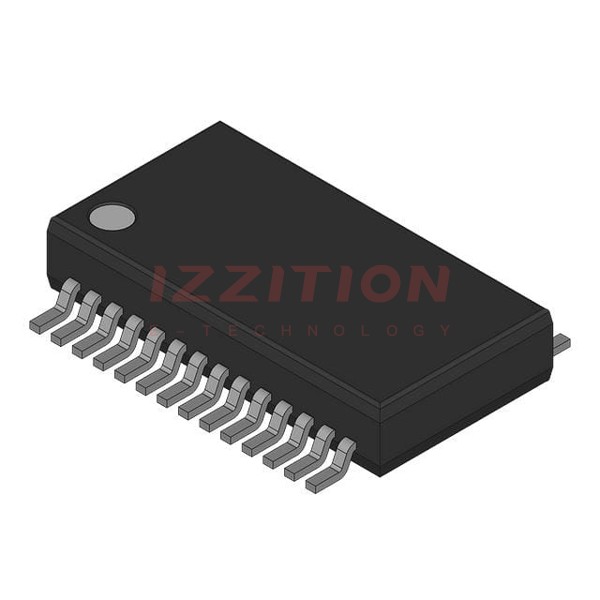

| Part Number | HI5760IA | HI5760IAZ | HI5860IA | HI5960IA |
|---|---|---|---|---|
| Manufacturer | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Number of Bits | 10 | 10 | 12 | 14 |
| Number of D/A Converters | 1 | 1 | 1 | 1 |
| Settling Time | 35ns (Typ) | 35ns (Typ) | 35ns (Typ) | 35ns (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes | Yes |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.25 | ±0.5, ±0.25 | ±0.5, ±0.5 | ±2.5, ±1.5 |
| Architecture | Current Source | Current Source | Current Source | Current Source |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) | 28-TSSOP (0.173", 4.40mm Width) | 28-TSSOP (0.173", 4.40mm Width) | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP | 28-TSSOP | 28-TSSOP | 28-TSSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
