Please send RFQ , we will respond immediately.

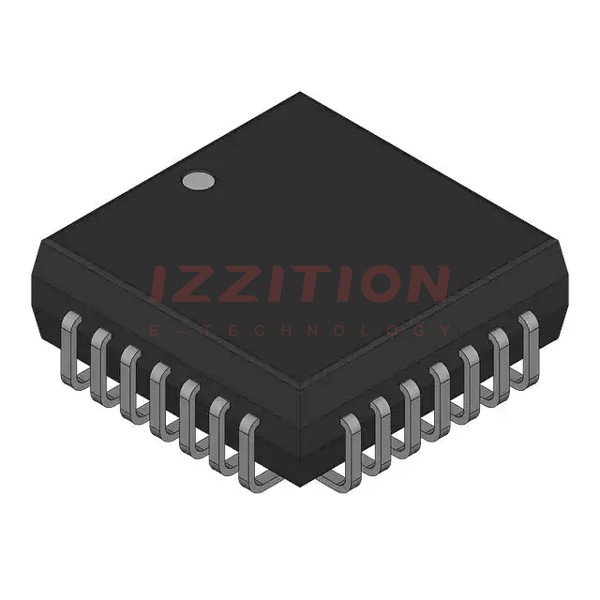

| Part Number | HI4P0506-5Z | HI4P0509-5Z | HI4P0546-5Z | HI4P0506-5 |
|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Renesas Electronics America Inc | Intersil |
| Product Status | Active | Active | Active | Obsolete |
| Switch Circuit | - | SP4T | - | - |
| Multiplexer/Demultiplexer Circuit | 16:1 | 4:1 | 16:1 | 16:1 |
| Number of Circuits | 1 | 2 | 1 | 1 |
| On-State Resistance (Max) | 400Ohm | 400Ohm | 1.8kOhm | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 20Ohm | 20Ohm | 126Ohm | 20Ohm |
| Voltage - Supply, Single (V+) | - | - | - | - |
| Voltage - Supply, Dual (V±) | ±15V | ±15V | ±15V | ±15V |
| Switch Time (Ton, Toff) (Max) | 250ns, 250ns (Typ) | 250ns, 250ns (Typ) | 300ns, 300ns (Typ) | 250ns, 250ns (Typ) |
| -3db Bandwidth | - | - | - | - |
| Charge Injection | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 52pF | 10pF, 12pF | 10pF, 52pF | 10pF, 52pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) | 30pA (Typ) | 30pA (Typ) | 30pA (Typ) |
| Crosstalk | - | - | - | - |
| Operating Temperature | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-LCC (J-Lead) | 20-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) | 20-PLCC (9x9) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) |
