Please send RFQ , we will respond immediately.

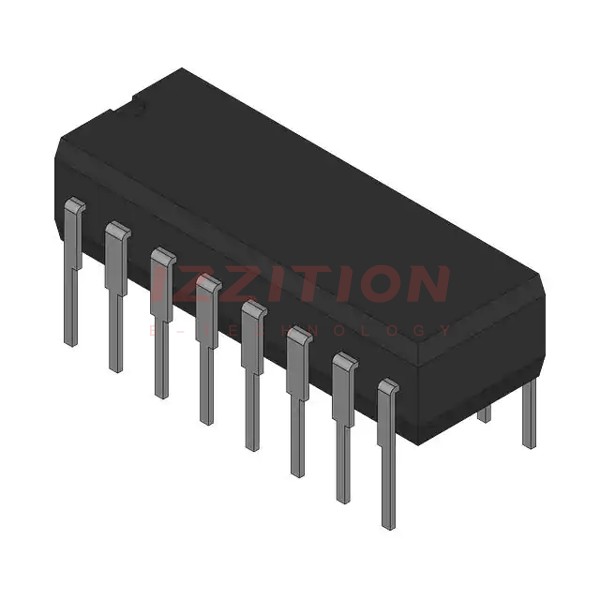

| Part Number | HI3-0509-5 | HI3-509-5 | HI3-0509A-5 | HI3-0549-5 | HI1-0509-5 | HI3-0506-5 | HI3-0507-5 | HI3-0508-5 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Intersil | Harris Corporation | Harris Corporation | Intersil | Harris Corporation | Intersil | Intersil | Harris Corporation |
| Product Status | Obsolete | Active | Active | Obsolete | Active | Obsolete | Obsolete | Active |
| Switch Circuit | SP4T | - | SP4T | SP4T | SP4T | - | - | - |
| Multiplexer/Demultiplexer Circuit | 4:1 | - | 4:1 | 4:1 | 4:1 | 16:1 | 8:1 | 8:1 |
| Number of Circuits | 2 | - | 2 | 2 | 2 | 1 | 2 | 1 |
| On-State Resistance (Max) | 400Ohm | - | 1.8kOhm | 1.8kOhm | 400Ohm | 400Ohm | 400Ohm | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 20Ohm | - | - | 126Ohm | 20Ohm | 20Ohm | 20Ohm | 20Ohm |
| Voltage - Supply, Single (V+) | - | - | 15V | - | - | - | - | - |
| Voltage - Supply, Dual (V±) | ±15V | - | ±15V | ±15V | ±15V | ±15V | ±15V | ±15V |
| Switch Time (Ton, Toff) (Max) | 250ns, 250ns (Typ) | - | 500ns, 500ns | 300ns, 300ns (Typ) | 500ns, 500ns | 250ns, 250ns (Typ) | 250ns, 250ns (Typ) | 250ns, 250ns (Typ) |
| -3db Bandwidth | - | - | - | - | - | - | - | - |
| Charge Injection | - | - | - | - | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 12pF | - | 10pF, 12pF | 10pF, 12pF | 10pF, 30pF | 10pF, 52pF | 10pF, 30pF | 10pF, 17pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) | - | 30pA (Typ) | 30pA (Typ) | 30pA (Typ) | 30pA (Typ) | 30pA (Typ) | 30pA (Typ) |
| Crosstalk | - | - | - | - | - | - | - | - |
| Operating Temperature | 0°C ~ 75°C (TA) | - | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) |
| Mounting Type | Through Hole | - | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) | - | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP | - | 16-PDIP | 16-PDIP | 16-CERDIP | 28-PDIP | 28-PDIP | 16-PDIP |
