Please send RFQ , we will respond immediately.
| Part Number | HI1-0509A-2 | HI1-0509A-5 | HI1-0509A-8 | HI1-0508A-2 |
|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Harris Corporation | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Obsolete | Active | Obsolete |
| Switch Circuit | SP4T | SP4T | 4PST - NO | - |
| Multiplexer/Demultiplexer Circuit | 4:1 | 4:1 | 4:1 | 8:1 |
| Number of Circuits | 2 | 2 | 2 | 8 |
| On-State Resistance (Max) | 1.5kOhm | 1.8kOhm | 1.5kOhm | 1.5kOhm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | - |
| Voltage - Supply, Single (V+) | - | - | ±15V | - |
| Voltage - Supply, Dual (V±) | ±15V | ±15V | ±15V | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 500ns, 500ns | 300ns, 300ns (Typ) | 500ns, 500ns | 500ns, 500ns |
| -3db Bandwidth | - | - | - | - |
| Charge Injection | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 12pF | 10pF, 12pF | 10pF, 12pF | 5pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) | 30pA (Typ) | 30pA (Typ) | 100µA |
| Crosstalk | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C (TA) | 0°C ~ 75°C (TA) | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

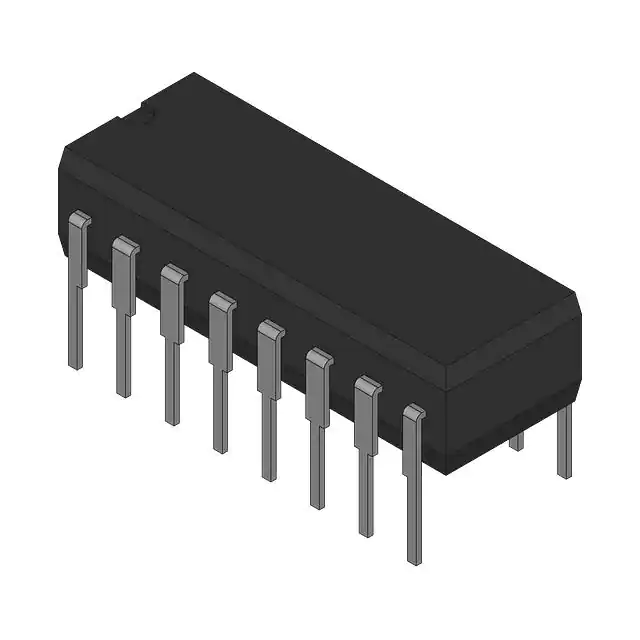

| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP | 16-CERDIP | 16-CERDIP | 16-CDIP |
