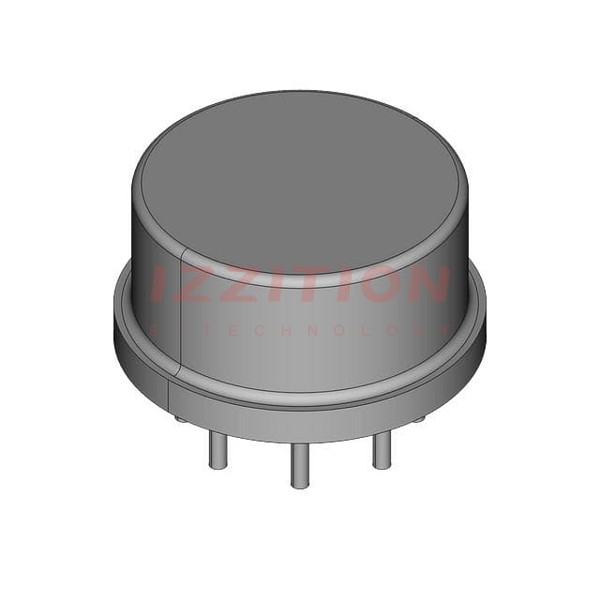

| Part Number | HA2-5160-5 | HA2-5170-5 | HA2-5162-5 | HA2-5160-2 |
|---|---|---|---|---|
| Manufacturer | Intersil | Harris Corporation | Harris Corporation | Intersil |
| Product Status | Obsolete | Active | Active | Active |
| Amplifier Type | General Purpose | J-FET | General Purpose | General Purpose |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - |
| Slew Rate | 120V/µs | 8V/µs | 70V/µs | 120V/µs |
| Gain Bandwidth Product | 100 MHz | - | 100 MHz | 100 MHz |
| -3db Bandwidth | - | - | - | - |
| Current - Input Bias | - | 20 pA | 20 pA | 20 pA |
| Voltage - Input Offset | - | 100 µV | 3 mV | 1 mV |
| Current - Supply | 10mA | 1.9mA | 8mA | 8mA |
| Current - Output / Channel | 20 mA | 15 mA | 20 mA | 20 mA |
| Voltage - Supply Span (Min) | 14 V | 44 V | 14 V | 14 V |
| Voltage - Supply Span (Max) | 36 V | 44 V | 36 V | 36 V |
| Operating Temperature | - | 0°C ~ 75°C | 0°C ~ 75°C | 0°C ~ 75°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can |
| Supplier Device Package | TO-99-8 | TO-99-8 | TO-99-8 | TO-99-8 |
