Please send RFQ , we will respond immediately.

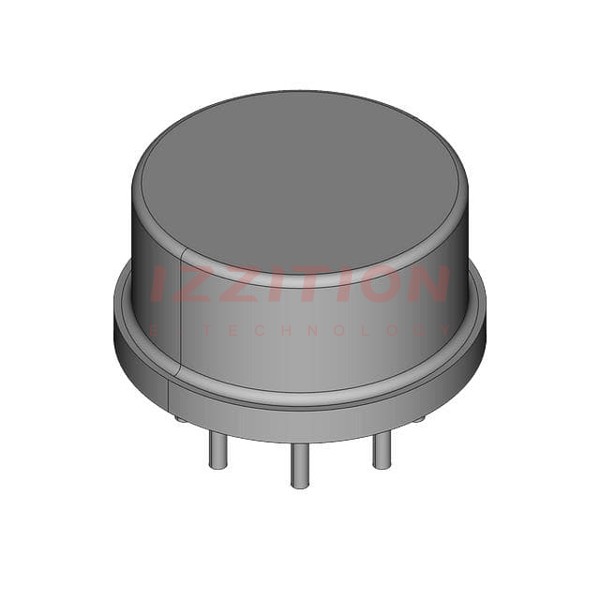

| Part Number | HA2-5160-2 | HA2-5160-5 | HA2-5180-2 | HA2-5170-2 | HA2-5130-2 |
|---|---|---|---|---|---|
| Manufacturer | Intersil | Intersil | Harris Corporation | Harris Corporation | Harris Corporation |
| Product Status | Active | Obsolete | Active | Active | Active |
| Amplifier Type | General Purpose | General Purpose | J-FET | J-FET | General Purpose |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - | - |
| Slew Rate | 120V/µs | 120V/µs | 7V/µs | 8V/µs | 0.8V/µs |
| Gain Bandwidth Product | 100 MHz | 100 MHz | 110 kHz | - | - |
| -3db Bandwidth | - | - | - | - | - |
| Current - Input Bias | 20 pA | - | 0.25 pA | 20 pA | 1 nA |
| Voltage - Input Offset | 1 mV | - | 1 mV | 100 µV | 10 µV |
| Current - Supply | 8mA | 10mA | 70µA | 1.9mA | 1mA |
| Current - Output / Channel | 20 mA | 20 mA | 15 mA | 15 mA | 20 mA |
| Voltage - Supply Span (Min) | 14 V | 14 V | 80 V | 44 V | 40 V |
| Voltage - Supply Span (Max) | 36 V | 36 V | 80 V | 44 V | 40 V |
| Operating Temperature | 0°C ~ 75°C | - | -55°C ~ 125°C (TA) | -55°C ~ 125°C | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can |
| Supplier Device Package | TO-99-8 | TO-99-8 | TO-99-8 | TO-99-8 | TO-99-8 |
