Fairchild Semiconductor-FSA9288AUMX - Interface - Analog Switches - Special Purpose Product Specifications and Latest Quotes

Applications:	Audio, UART, USB
Multiplexer/Demultiplexer Circuit:	3:1
Switch Circuit:	-
Number of Channels:	1
On-State Resistance (Max):	3Ohm (Audio), 10Ohm (USB)
Voltage - Supply, Single (V+):	3V ~ 4.4V
Voltage - Supply, Dual (V±):	-
-3db Bandwidth:	-
Features:	I²C, USB 2.0
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-UFQFN Exposed Pad
Supplier Device Package:	20-UMLP (4x3)

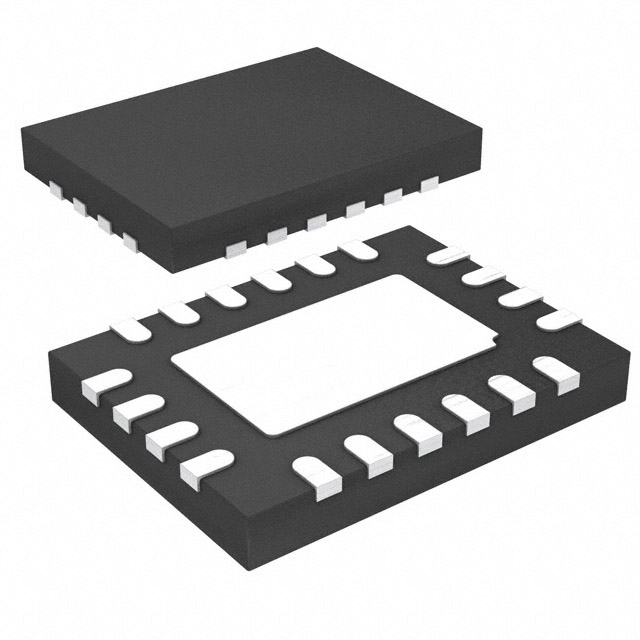

Fairchild Semiconductor FSA9288AUMX
