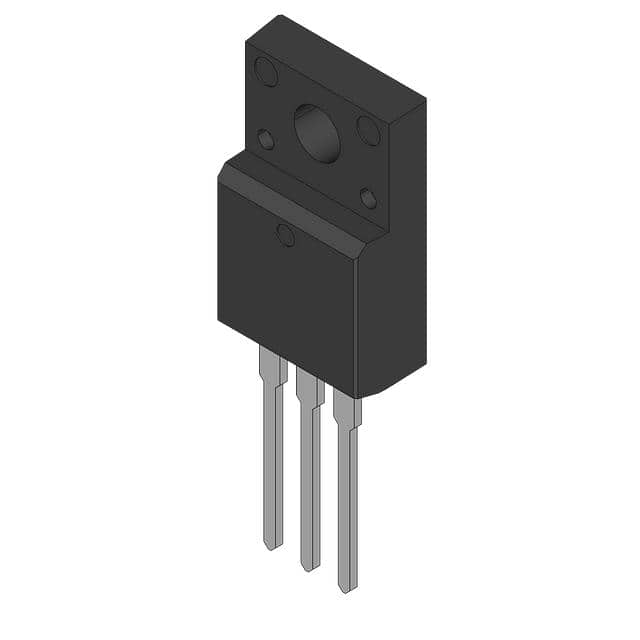

| Part Number | FQPF7N40 | FQPF7N60 | FQPF7N80 | FQPF2N40 | FQPF3N40 | FQPF5N40 | FQPF7N10 | FQPF7N20 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi | onsemi | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 400 V | 600 V | 800 V | 400 V | 400 V | 400 V | 100 V | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 4.6A (Tc) | 4.3A (Tc) | 3.8A (Tc) | 1.1A (Tc) | 1.6A (Tc) | 3A (Tc) | 5.5A (Tc) | 4.8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 800mOhm @ 2.3A, 10V | 1Ohm @ 2.2A, 10V | 1.5Ohm @ 1.9A, 10V | 5.8Ohm @ 550mA, 10V | 3.4Ohm @ 800mA, 10V | 1.6Ohm @ 1.5A, 10V | 350mOhm @ 2.75A, 10V | 690mOhm @ 2.4A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 4V @ 250µA | 4V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 10 V | 38 nC @ 10 V | 52 nC @ 10 V | 5.5 nC @ 10 V | 7.5 nC @ 10 V | 13 nC @ 10 V | 7.5 nC @ 10 V | 10 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V | ±25V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 780 pF @ 25 V | 1430 pF @ 25 V | 1850 pF @ 25 V | 150 pF @ 25 V | 230 pF @ 25 V | 460 pF @ 25 V | 250 pF @ 25 V | 400 pF @ 25 V |
| FET Feature | - | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 42W (Tc) | 48W (Tc) | 56W (Tc) | 16W (Tc) | 20W (Tc) | 35W (Tc) | 23W (Tc) | 37W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
