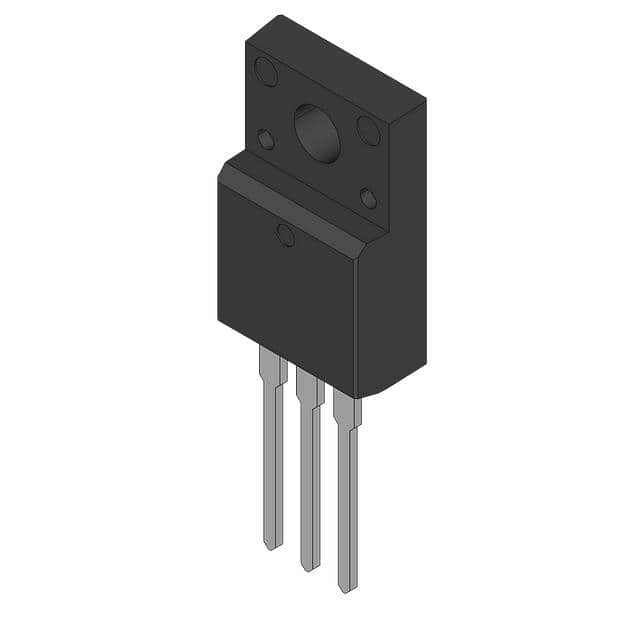

| Part Number | FQPF7N20L | FQPF4N20L | FQPF5N20L | FQPF7N10L | FQPF7N20 |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V | 200 V | 200 V | 100 V | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Tc) | 3A (Tc) | 3.5A (Tc) | 5.5A (Tc) | 4.8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | 5V, 10V | 5V, 10V | 5V, 10V | 10V |
| Rds On (Max) @ Id, Vgs | 750mOhm @ 2.5A, 10V | 1.35Ohm @ 1.5A, 10V | 1.2Ohm @ 1.75A, 10V | 350mOhm @ 2.75A, 10V | 690mOhm @ 2.4A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 2V @ 250µA | 2V @ 250µA | 2V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 5 V | 5.2 nC @ 5 V | 6.2 nC @ 5 V | 6 nC @ 5 V | 10 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 500 pF @ 25 V | 310 pF @ 25 V | 325 pF @ 25 V | 290 pF @ 25 V | 400 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 37W (Tc) | 27W (Tc) | 32W (Tc) | 23W (Tc) | 37W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
