| Part Number | FQPF5N15 | FQPF6N15 | FQPF9N15 |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V | 150 V | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 4.2A (Tc) | 5A (Tc) | 6.9A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 800mOhm @ 2.1A, 10V | 600mOhm @ 2.5A, 10V | 400mOhm @ 3.45A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7 nC @ 10 V | 8.5 nC @ 10 V | 13 nC @ 10 V |
| Vgs (Max) | ±25V | ±25V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 230 pF @ 25 V | 270 pF @ 25 V | 410 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 32W (Tc) | 38W (Tc) | 44W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

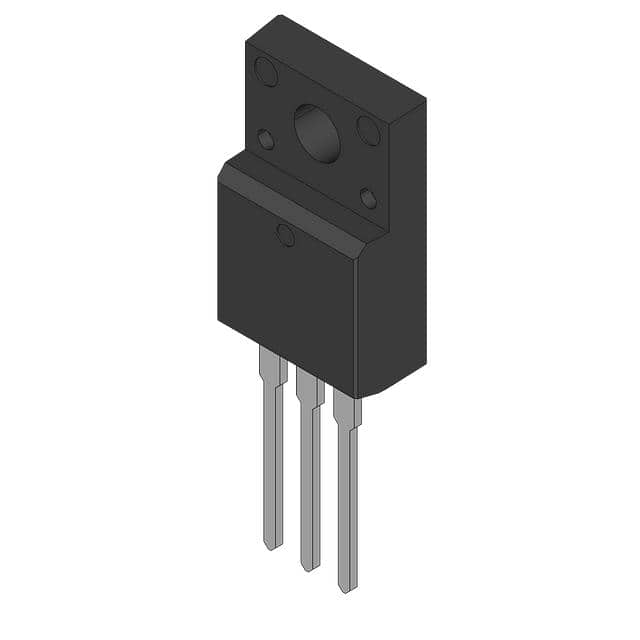

| Supplier Device Package | TO-220F-3 | TO-220F-3 | TO-220F-3 |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
