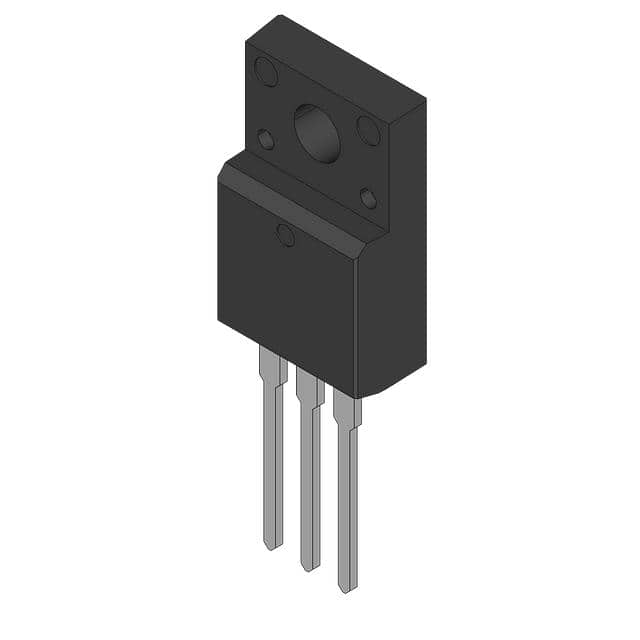

| Part Number | FQPF3N60 | FQPF4N60 | FQPF3N80 | FQPF3N90 | FQPF6N60 | FQPF7N60 | FQPF5N60 | FQPF1N60 | FQPF2N60 | FQPF3N30 | FQPF3N40 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 800 V | 900 V | 600 V | 600 V | 600 V | 600 V | 600 V | 300 V | 400 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Tc) | 2.6A (Tc) | 1.8A (Tc) | 2.1A (Tc) | 3.6A (Tc) | 4.3A (Tc) | 2.8A (Tc) | 900mA (Tc) | 1.6A (Tc) | 1.95A (Tc) | 1.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V | 10V | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 3.6Ohm @ 1A, 10V | 2.2Ohm @ 1.3A, 10V | 5Ohm @ 900mA, 10V | 4.25Ohm @ 1.05A, 10V | 1.5Ohm @ 1.8A, 10V | 1Ohm @ 2.2A, 10V | 2Ohm @ 1.4A, 10V | 11.5Ohm @ 450mA, 10V | 4.7Ohm @ 800mA, 10V | 2.2Ohm @ 980mA, 10V | 3.4Ohm @ 800mA, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V | 20 nC @ 10 V | 19 nC @ 10 V | 26 nC @ 10 V | 25 nC @ 10 V | 38 nC @ 10 V | 20 nC @ 10 V | 6 nC @ 10 V | 11 nC @ 10 V | 7 nC @ 10 V | 7.5 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 450 pF @ 25 V | 670 pF @ 25 V | 690 pF @ 25 V | 910 pF @ 25 V | 1000 pF @ 25 V | 1430 pF @ 25 V | 730 pF @ 25 V | 150 pF @ 25 V | 350 pF @ 25 V | 230 pF @ 25 V | 230 pF @ 25 V |
| FET Feature | - | - | - | - | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 34W (Tc) | 36W (Tc) | 39W (Tc) | 43W (Tc) | 44W (Tc) | 48W (Tc) | 40W (Tc) | 21W (Tc) | 28W (Tc) | 20W (Tc) | 20W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
