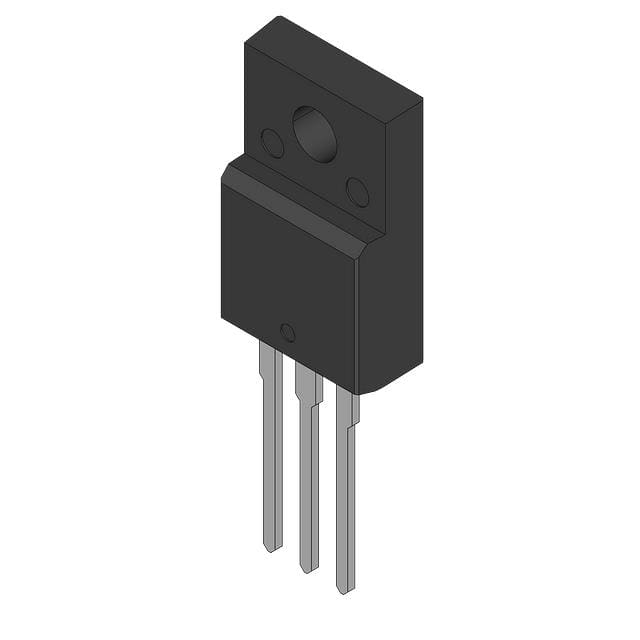

| Part Number | FQPF3N25 | FQPF6N25 | FQPF9N25 | FQPF4N25 |
|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| Product Status | Active | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V | 250 V | 250 V | 250 V |
| Current - Continuous Drain (Id) @ 25°C | 2.3A (Tc) | 4A (Tc) | 6.7A (Tc) | 2.8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 2.2Ohm @ 1.15A, 10V | 1Ohm @ 2A, 10V | 420mOhm @ 3.35A, 10V | 1.75Ohm @ 1.4A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5.2 nC @ 10 V | 8.5 nC @ 10 V | 20 nC @ 10 V | 5.6 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 170 pF @ 25 V | 300 pF @ 25 V | 700 pF @ 25 V | 200 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 27W (Tc) | 37W (Tc) | 45W (Tc) | 32W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
