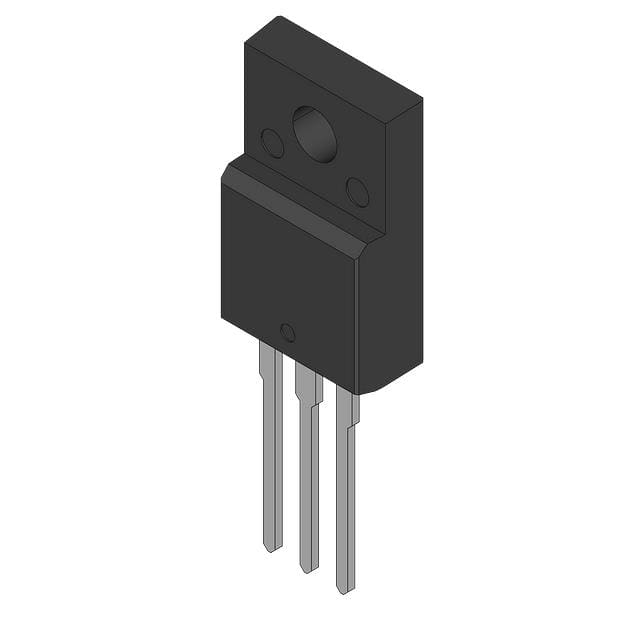

| Part Number | FQPF33N10L | FQPF13N10L | FQPF33N10 |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | Fairchild Semiconductor |
| Product Status | Active | Obsolete | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 18A (Tc) | 8.7A (Tc) | 18A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | 5V, 10V | 10V |
| Rds On (Max) @ Id, Vgs | 52mOhm @ 9A, 10V | 180mOhm @ 4.35A, 10V | 52mOhm @ 9A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 40 nC @ 5 V | 12 nC @ 5 V | 51 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1630 pF @ 25 V | 520 pF @ 25 V | 1500 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 41W (Tc) | 30W (Tc) | 41W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220F-3 | TO-220F-3 | TO-220F-3 |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
