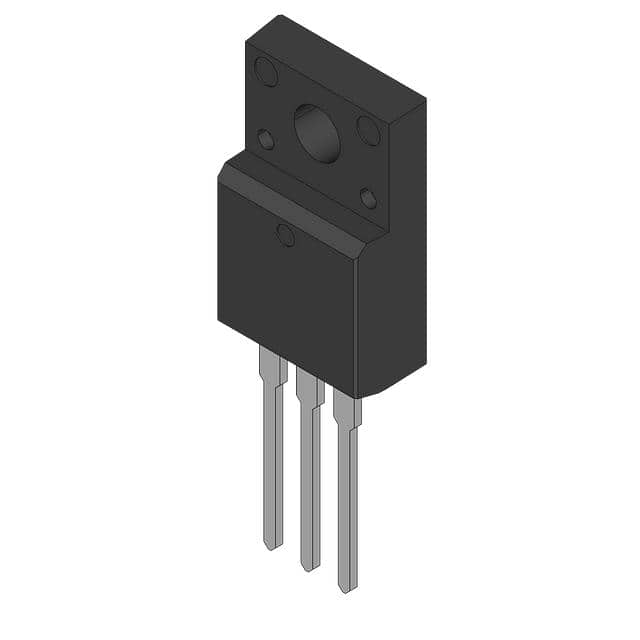

| Part Number | FQPF2N90 | FQPF3N90 | FQPF5N90 | FQPF4N90 | FQPF2NA90 | FQPF6N90 | FQPF2N30 | FQPF2N40 | FQPF2N50 | FQPF2N60 | FQPF2N70 | FQPF2N80 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 900 V | 900 V | 900 V | 900 V | 900 V | 900 V | 300 V | 400 V | 500 V | 600 V | 700 V | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 1.4A (Tc) | 2.1A (Tc) | 3A (Tc) | 2.5A (Tc) | 1.7A (Tc) | 3.4A (Tc) | 1.34A (Tc) | 1.1A (Tc) | 1.3A (Tc) | 1.6A (Tc) | 2A (Tc) | 1.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V | 10V | 10V | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 7.2Ohm @ 700mA, 10V | 4.25Ohm @ 1.05A, 10V | 2.3Ohm @ 1.5A, 10V | 3.3Ohm @ 1.25A, 10V | 5.8Ohm @ 850mA, 10V | 1.9Ohm @ 1.7A, 10V | 3.7Ohm @ 670mA, 10V | 5.8Ohm @ 550mA, 10V | 5.3Ohm @ 650mA, 10V | 4.7Ohm @ 800mA, 10V | 6.3Ohm @ 1A, 10V | 6.3Ohm @ 750mA, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 10 V | 26 nC @ 10 V | 40 nC @ 10 V | 30 nC @ 10 V | 20 nC @ 10 V | 52 nC @ 10 V | 5 nC @ 10 V | 5.5 nC @ 10 V | 8 nC @ 10 V | 11 nC @ 10 V | 11 nC @ 10 V | 15 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 500 pF @ 25 V | 910 pF @ 25 V | 1550 pF @ 25 V | 1100 pF @ 25 V | 680 pF @ 25 V | 1880 pF @ 25 V | 130 pF @ 25 V | 150 pF @ 25 V | 230 pF @ 25 V | 350 pF @ 25 V | 350 pF @ 25 V | 550 pF @ 25 V |
| FET Feature | - | - | - | - | - | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 35W (Tc) | 43W (Tc) | 51W (Tc) | 47W (Tc) | 39W (Tc) | 56W (Tc) | 16W (Tc) | 16W (Tc) | 20W (Tc) | 28W (Tc) | 28W (Tc) | 35W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 | TO-220F-3 |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
