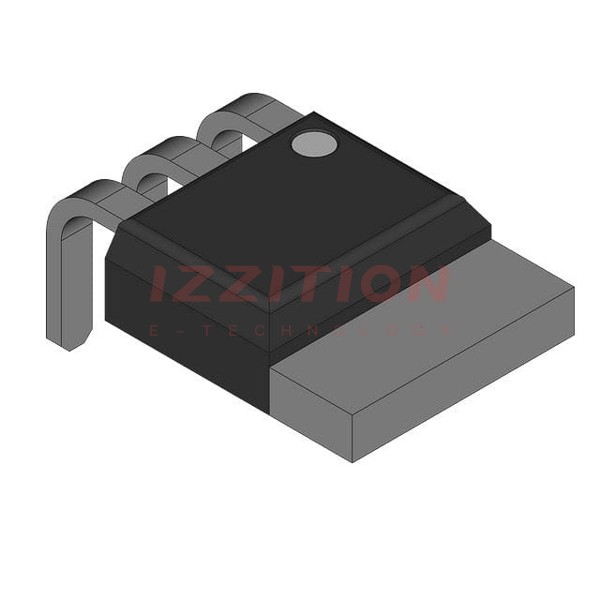

| Part Number | FQI4N80TU | FQI4N90TU | FQI7N80TU | FQI5N80TU | FQI2N80TU | FQI3N80TU | FQI4N20TU |
|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V | 900 V | 800 V | 800 V | 800 V | 800 V | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 3.9A (Tc) | 4.2A (Tc) | 6.6A (Tc) | 4.8A (Tc) | 2.4A (Tc) | 3A (Tc) | 3.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 3.6Ohm @ 1.95A, 10V | 3.3Ohm @ 2.1A, 10V | 1.5Ohm @ 3.3A, 10V | 2.6Ohm @ 2.4A, 10V | 6.3Ohm @ 900mA, 10V | 5Ohm @ 1.5A, 10V | 1.4Ohm @ 1.8A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 10 V | 30 nC @ 10 V | 52 nC @ 10 V | 33 nC @ 10 V | 15 nC @ 10 V | 19 nC @ 10 V | 6.5 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 880 pF @ 25 V | 1100 pF @ 25 V | 1850 pF @ 25 V | 1250 pF @ 25 V | 550 pF @ 25 V | 690 pF @ 25 V | 220 pF @ 25 V |
| FET Feature | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 3.13W (Ta), 130W (Tc) | 3.13W (Ta), 140W (Tc) | 3.13W (Ta), 167W (Tc) | 3.13W (Ta), 140W (Tc) | 3.13W (Ta), 85W (Tc) | 3.13W (Ta), 107W (Tc) | 3.13W (Ta), 45W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | I2PAK (TO-262) | I2PAK (TO-262) | I2PAK (TO-262) | I2PAK (TO-262) | I2PAK | I2PAK (TO-262) | I2PAK (TO-262) |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA |
