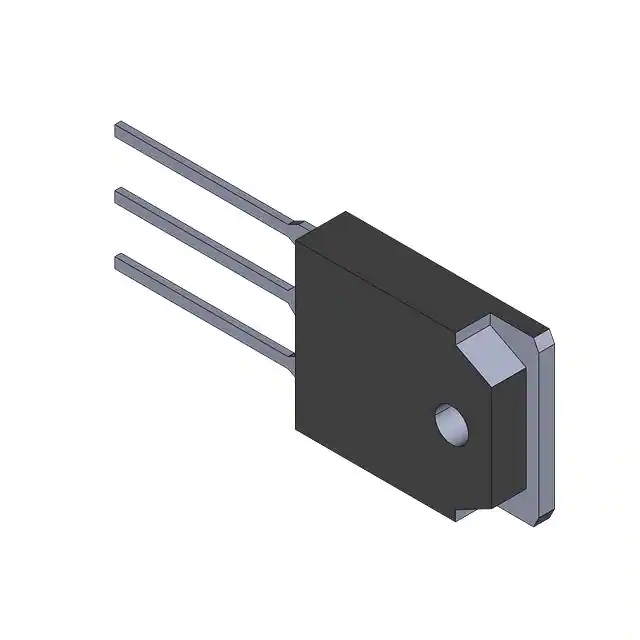

| Part Number | FQAF7N90 | FQA7N90 | FQAF5N90 | FQAF6N90 | FQAF7N80 |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 900 V | 900 V | 900 V | 900 V | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 5.2A (Tc) | 7.4A (Tc) | 4.1A (Tc) | 4.5A (Tc) | 5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 1.55Ohm @ 2.6A, 10V | 1.55Ohm @ 3.7A, 10V | 2.3Ohm @ 2.05A, 10V | 1.9Ohm @ 2.3A, 10V | 1.5Ohm @ 2.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 59 nC @ 10 V | 59 nC @ 10 V | 40 nC @ 10 V | 52 nC @ 10 V | 52 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2280 pF @ 25 V | 2280 pF @ 25 V | 1550 pF @ 25 V | 1880 pF @ 25 V | 1850 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 107W (Tc) | 198W (Tc) | 90W (Tc) | 96W (Tc) | 96W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-3PF | TO-3P | TO-3PF | TO-3PF | TO-3PF |
| Package / Case | TO-3P-3 Full Pack | TO-3P-3, SC-65-3 | TO-3P-3 Full Pack | TO-3P-3 Full Pack | TO-3P-3 Full Pack |
