FOD816S
  • Share:

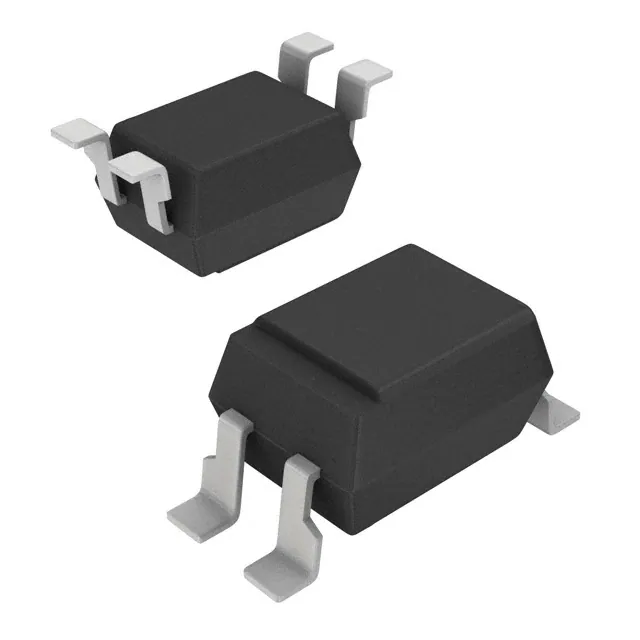

Fairchild Semiconductor FOD816S

Manufacturer No:
FOD816S
Manufacturer:
Fairchild Semiconductor
Package:
Box
Datasheet:
FOD816S Datasheet
ECAD Model:
-
Description:
AC IN-DARLINGTON OUT OPTOCOUPLER
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):600% @ 1mA
Current Transfer Ratio (Max):7500% @ 1mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):60µs, 53µs
Input Type:AC, DC
Output Type:Darlington
Voltage - Output (Max):35V
Current - Output / Channel:80mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):1V
Operating Temperature:-30°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SMD
0 Remaining View Similar

In Stock

-
302

Please send RFQ , we will respond immediately.
