Fairchild Semiconductor-FMG1G300US60L - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

Part Number	FMG1G300US60L	FMG1G300US60LE	FMG1G400US60L	FMG1G100US60L	FMG1G200US60L	FMG1G300US60H
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor
Product Status	Active	Active	Active	Obsolete	Active	Active
IGBT Type	-	-	-	-	-	-
Configuration	Single	Single	Single	Single	Single	Single
Voltage - Collector Emitter Breakdown (Max)	600 V	600 V	600 V	600 V	600 V	600 V
Current - Collector (Ic) (Max)	300 A	300 A	400 A	100 A	200 A	300 A
Power - Max	892 W	892 W	1136 W	400 W	695 W	892 W
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 300A	2.7V @ 15V, 300A	2.7V @ 15V, 400A	2.8V @ 15V, 100A	2.7V @ 15V, 200A	2.7V @ 15V, 300A
Current - Collector Cutoff (Max)	250 µA	250 µA	250 µA	250 µA	250 µA	250 µA
Input Capacitance (Cies) @ Vce	-	-	-	10.84 nF @ 30 V	-	-
Input	Standard	Standard	Standard	Standard	Standard	Standard
NTC Thermistor	No	No	No	No	No	No
Operating Temperature	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Package / Case	Module	Module	Module	7PM-GA	Module	Module
Supplier Device Package	-	-	-	7PM-GA	-	-

IGBT Type:	-
Configuration:	Single
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	300 A
Power - Max:	892 W
Vce(on) (Max) @ Vge, Ic:	2.7V @ 15V, 300A
Current - Collector Cutoff (Max):	250 µA
Input Capacitance (Cies) @ Vce:	-
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	-

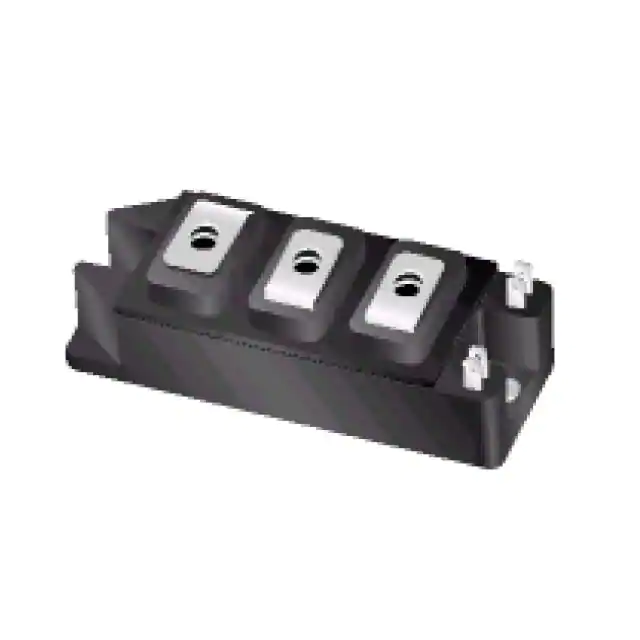

Fairchild Semiconductor FMG1G300US60L
