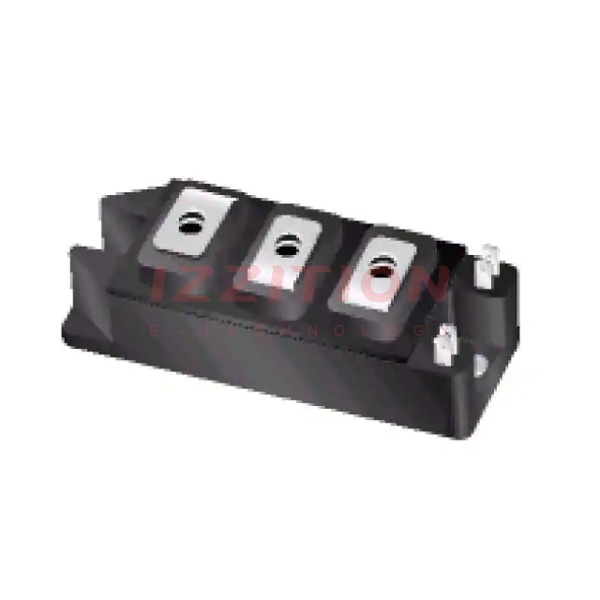

| Part Number | FMG1G300US60HE | FMG1G300US60LE | FMG1G300US60H |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active |
| IGBT Type | - | - | - |
| Configuration | Single | Single | Single |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 300 A | 300 A | 300 A |
| Power - Max | 892 W | 892 W | 892 W |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 300A | 2.7V @ 15V, 300A | 2.7V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 250 µA | 250 µA | 250 µA |
| Input Capacitance (Cies) @ Vce | - | - | - |
| Input | Standard | Standard | Standard |
| NTC Thermistor | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | - | - | - |
