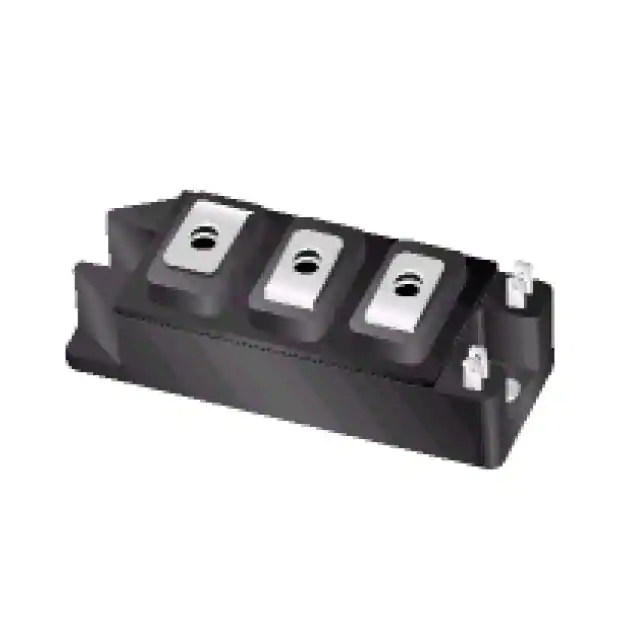

| Part Number | FMG1G150US60H | FMG1G50US60H | FMG1G150US60L | FMG1G100US60H |
|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Obsolete | Active | Obsolete |
| IGBT Type | - | - | - | - |
| Configuration | Single | Single | Single | Single |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 150 A | 50 A | 150 A | 100 A |
| Power - Max | 595 W | 250 W | 595 W | 400 W |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 150A | 2.8V @ 15V, 50A | 2.7V @ 15V, 150A | 2.8V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 250 µA | 250 µA | 250 µA | 250 µA |
| Input Capacitance (Cies) @ Vce | - | 3.46 nF @ 30 V | - | 10.84 nF @ 30 V |
| Input | Standard | Standard | Standard | Standard |
| NTC Thermistor | No | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | 7PM-GA | Module | 7PM-GA |
| Supplier Device Package | - | 7PM-GA | - | 7PM-GA |
