| Part Number | FLZ5V6A | FLZ5V6C | FLZ5V6B | FLZ3V6A | FLZ5V1A |
|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 5.4 V | 5.8 V | 5.6 V | 3.6 V | 4.9 V |
| Tolerance | ±3% | ±3% | ±3% | ±3% | ±3% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 10.5 Ohms | 10.5 Ohms | 10.5 Ohms | 48 Ohms | 17 Ohms |
| Current - Reverse Leakage @ Vr | 750 nA @ 2.5 V | 750 nA @ 2.5 V | 750 nA @ 2.5 V | 2.8 µA @ 1 V | 190 nA @ 1.5 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

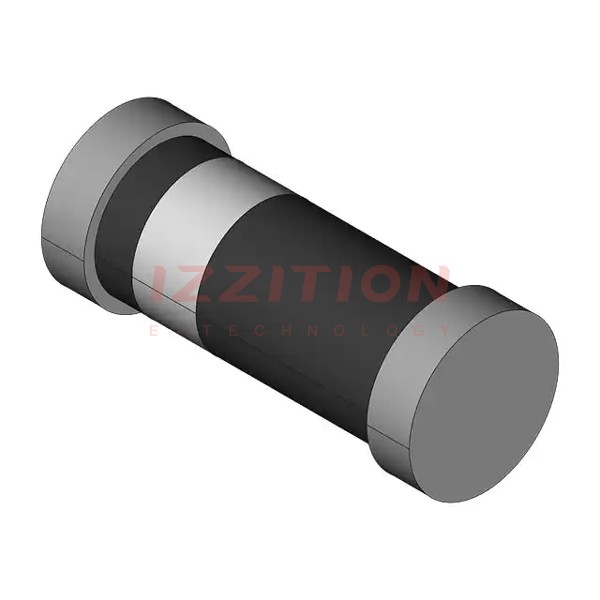

| Package / Case | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | SOD-80 | SOD-80 | SOD-80 | SOD-80 | SOD-80 |
