Fairchild Semiconductor-FLZ36VA - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	FLZ36VA	FLZ36VB	FLZ39VA	FLZ36VD	FLZ36VC	FLZ16VA	FLZ30VA	FLZ33VA
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	onsemi	Fairchild Semiconductor	Fairchild Semiconductor
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Voltage - Zener (Nom) (Vz)	33 V	33.6 V	35.6 V	34.9 V	34.3 V	15.2 V	27.7 V	30.5 V
Tolerance	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	63 Ohms	63 Ohms	72 Ohms	63 Ohms	63 Ohms	15.2 Ohms	46 Ohms	55 Ohms
Current - Reverse Leakage @ Vr	133 nA @ 27 V	133 nA @ 27 V	133 nA @ 30 V	133 nA @ 27 V	133 nA @ 27 V	133 nA @ 12 V	133 nA @ 23 V	133 nA @ 25 V
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80
Supplier Device Package	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80

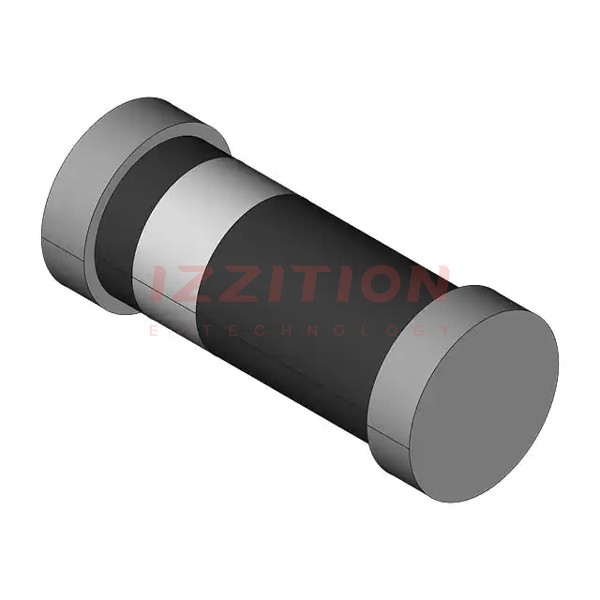

Fairchild Semiconductor FLZ36VA
