Fairchild Semiconductor-FLZ33VA - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	FLZ33VA	FLZ33VB	FLZ36VA	FLZ39VA	FLZ33VD	FLZ33VC	FLZ13VA	FLZ30VA
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Voltage - Zener (Nom) (Vz)	30.5 V	31.1 V	33 V	35.6 V	32.3 V	31.7 V	12.5 V	27.7 V
Tolerance	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	55 Ohms	55 Ohms	63 Ohms	72 Ohms	55 Ohms	55 Ohms	11.4 Ohms	46 Ohms
Current - Reverse Leakage @ Vr	133 nA @ 25 V	133 nA @ 25 V	133 nA @ 27 V	133 nA @ 30 V	133 nA @ 25 V	133 nA @ 25 V	133 nA @ 10 V	133 nA @ 23 V
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80
Supplier Device Package	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80

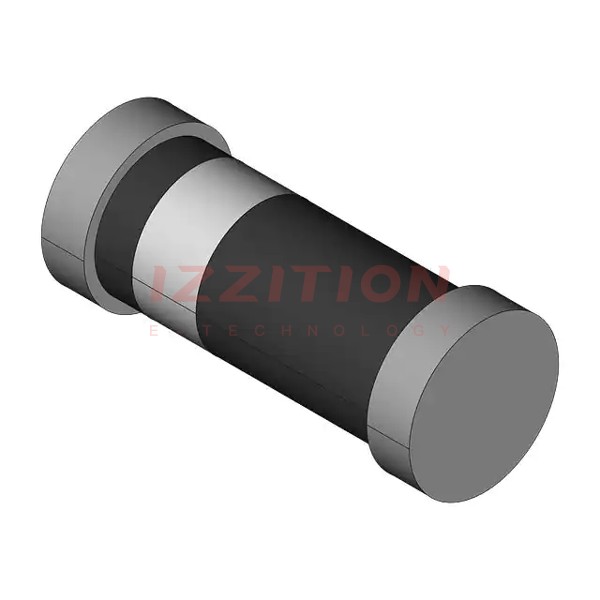

Fairchild Semiconductor FLZ33VA
