Fairchild Semiconductor-FLZ2V7A - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	FLZ2V7A	FLZ2V7B	FLZ4V7A	FLZ2V2A	FLZ2V4A
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Voltage - Zener (Nom) (Vz)	2.6 V	2.8 V	4.6 V	2.2 V	2.4 V
Tolerance	±4%	±4%	±3%	±4%	±4%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	35 Ohms	35 Ohms	21 Ohms	35 Ohms	35 Ohms
Current - Reverse Leakage @ Vr	70 µA @ 1 V	70 µA @ 1 V	190 nA @ 1 V	55 µA @ 700 mV	84 µA @ 1 V
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80
Supplier Device Package	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80

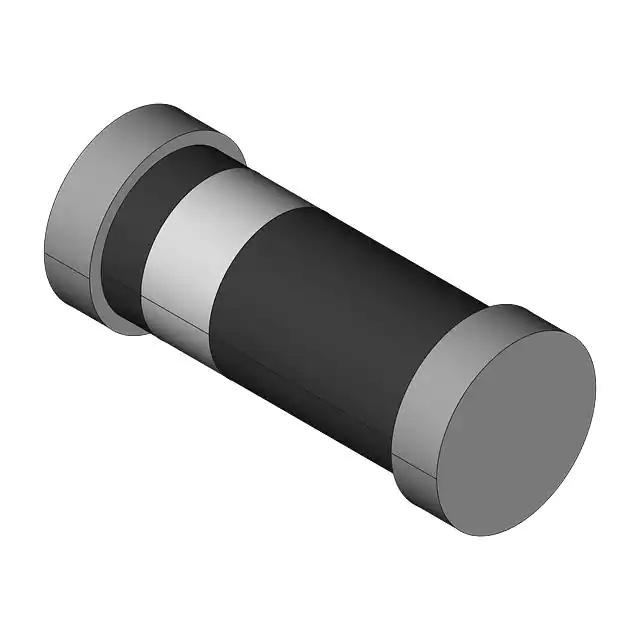

Fairchild Semiconductor FLZ2V7A
