| Part Number | FLZ2V4A | FLZ2V4B | FLZ2V7A | FLZ2V2A |
|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 2.4 V | 2.5 V | 2.6 V | 2.2 V |
| Tolerance | ±4% | ±4% | ±4% | ±4% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 35 Ohms | 35 Ohms | 35 Ohms | 35 Ohms |
| Current - Reverse Leakage @ Vr | 84 µA @ 1 V | 84 µA @ 1 V | 70 µA @ 1 V | 55 µA @ 700 mV |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

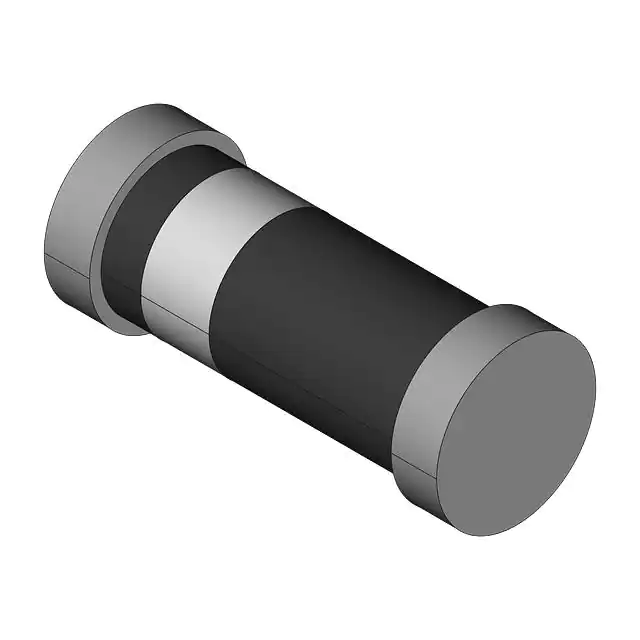

| Package / Case | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | SOD-80 | SOD-80 | SOD-80 | SOD-80 |
