Fairchild Semiconductor-FLZ27VA - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	FLZ27VA	FLZ27VB	FLZ27VD	FLZ27VC	FLZ20VA	FLZ22VA	FLZ24VA
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	onsemi	Fairchild Semiconductor	Fairchild Semiconductor	onsemi
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Voltage - Zener (Nom) (Vz)	24.9 V	25.6 V	27 V	26.3 V	18.5 V	20.6 V	22.7 V
Tolerance	±3%	±3%	±3%	±3%	±3%	±3%	±3%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	38 Ohms	38 Ohms	38 Ohms	38 Ohms	23.5 Ohms	25.6 Ohms	29 Ohms
Current - Reverse Leakage @ Vr	133 nA @ 21 V	133 nA @ 21 V	133 nA @ 21 V	133 nA @ 21 V	133 nA @ 15 V	133 nA @ 17 V	133 nA @ 19 V
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80
Supplier Device Package	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80

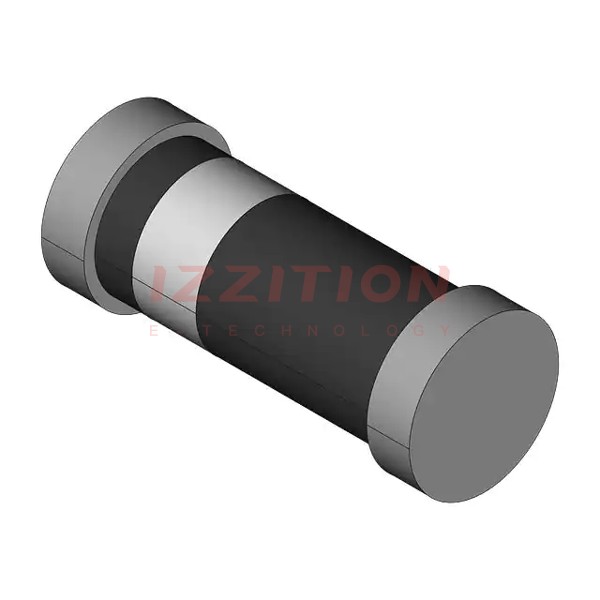

Fairchild Semiconductor FLZ27VA
