Fairchild Semiconductor-FLZ22VA - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	FLZ22VA	FLZ22VC	FLZ22VB	FLZ27VA	FLZ22VD	FLZ24VA	FLZ12VA	FLZ20VA
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	onsemi	onsemi	Fairchild Semiconductor	Fairchild Semiconductor
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Voltage - Zener (Nom) (Vz)	20.6 V	21.7 V	21.2 V	24.9 V	22.2 V	22.7 V	11.4 V	18.5 V
Tolerance	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	25.6 Ohms	25.6 Ohms	25.6 Ohms	38 Ohms	25.6 Ohms	29 Ohms	9.5 Ohms	23.5 Ohms
Current - Reverse Leakage @ Vr	133 nA @ 17 V	133 nA @ 17 V	133 nA @ 17 V	133 nA @ 21 V	133 nA @ 17 V	133 nA @ 19 V	133 nA @ 9 V	133 nA @ 15 V
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA	1.2 V @ 200 mA
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80	DO-213AC, MINI-MELF, SOD-80
Supplier Device Package	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80	SOD-80

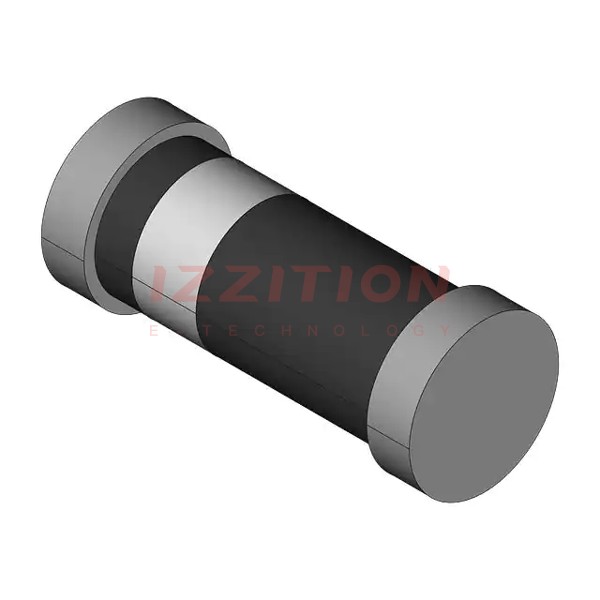

Fairchild Semiconductor FLZ22VA
