| Part Number | FLZ20VA | FLZ22VA | FLZ30VA | FLZ20VB | FLZ27VA | FLZ20VC | FLZ20VD | FLZ24VA | FLZ10VA |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 18.5 V | 20.6 V | 27.7 V | 19.1 V | 24.9 V | 19.8 V | 20.3 V | 22.7 V | 9.4 V |
| Tolerance | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 23.5 Ohms | 25.6 Ohms | 46 Ohms | 23.5 Ohms | 38 Ohms | 23.5 Ohms | 23.5 Ohms | 29 Ohms | 6.6 Ohms |
| Current - Reverse Leakage @ Vr | 133 nA @ 15 V | 133 nA @ 17 V | 133 nA @ 23 V | 133 nA @ 15 V | 133 nA @ 21 V | 133 nA @ 15 V | 133 nA @ 15 V | 133 nA @ 19 V | 110 nA @ 7 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

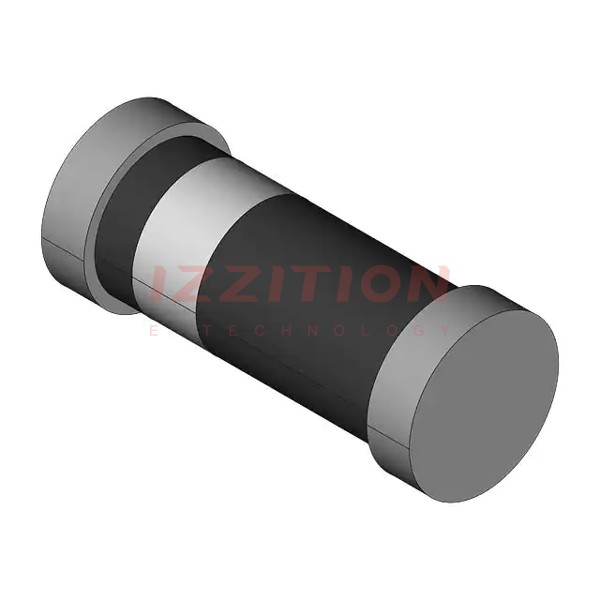

| Package / Case | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | SOD-80 | SOD-80 | SOD-80 | SOD-80 | SOD-80 | SOD-80 | SOD-80 | SOD-80 | SOD-80 |
