Please send RFQ , we will respond immediately.
| Part Number | FLZ18VB | FLZ18VC | FLZ10VB | FLZ11VB | FLZ12VB | FLZ13VB | FLZ15VB | FLZ16VB | FLZ18VA |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | 17.3 V | 17.9 V | 9.7 V | 10.7 V | 11.7 V | 12.9 V | 14.3 V | 15.7 V | 16.7 V |
| Tolerance | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 19.4 Ohms | 19.4 Ohms | 6.6 Ohms | 8.5 Ohms | 9.5 Ohms | 11.4 Ohms | 13.3 Ohms | 15.2 Ohms | 19.4 Ohms |
| Current - Reverse Leakage @ Vr | 133 nA @ 13 V | 133 nA @ 13 V | 110 nA @ 7 V | 133 nA @ 8 V | 133 nA @ 9 V | 133 nA @ 10 V | 133 nA @ 11 V | 133 nA @ 12 V | 133 nA @ 13 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

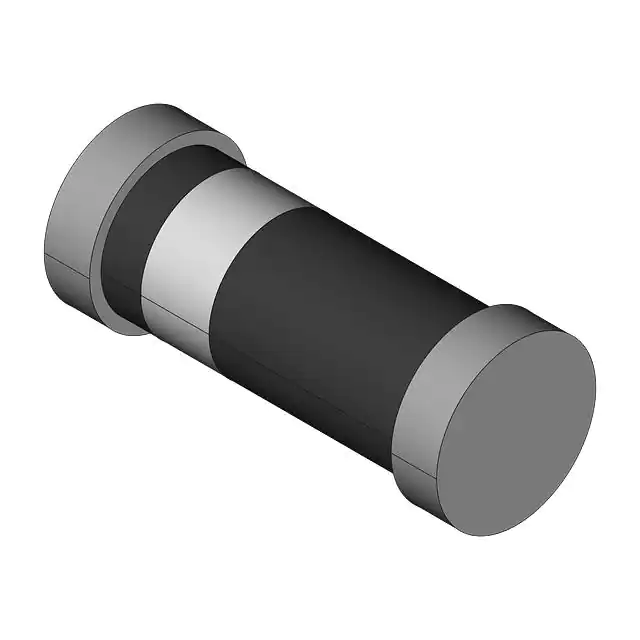

| Package / Case | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | SOD-80 | SOD-80 | SOD-80 | SOD-80 | SOD-80 | SOD-80 | SOD-80 | SOD-80 | SOD-80 |
