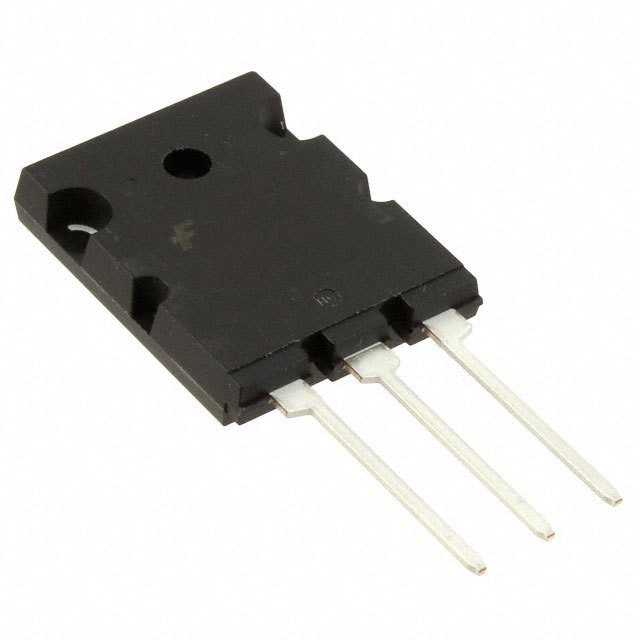

| Part Number | FGL40N120ANTU | FGH40N120ANTU | FGL40N120ANDTU |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Active | Obsolete | Not For New Designs |
| IGBT Type | NPT | NPT | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 64 A | 64 A | 64 A |
| Current - Collector Pulsed (Icm) | 160 A | 160 A | 160 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 40A | 3.2V @ 15V, 40A | 3.2V @ 15V, 40A |
| Power - Max | 500 W | 417 W | 500 W |
| Switching Energy | 2.3mJ (on), 1.1mJ (off) | 2.3mJ (on), 1.1mJ (off) | 2.3mJ (on), 1.1mJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 220 nC | 220 nC | 220 nC |
| Td (on/off) @ 25°C | 15ns/110ns | 15ns/110ns | 15ns/110ns |
| Test Condition | 600V, 40A, 5Ohm, 15V | 600V, 40A, 5Ohm, 15V | 600V, 40A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - | - | 112 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | - | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-264-3, TO-264AA | TO-247-3 | TO-264-3, TO-264AA |
| Supplier Device Package | HPM F2 | TO-247-3 | TO-264-3 |
