Fairchild Semiconductor-FGB3040CS - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	430 V
Current - Collector (Ic) (Max):	21 A
Current - Collector Pulsed (Icm):	-
Vce(on) (Max) @ Vge, Ic:	1.6V @ 4V, 6A
Power - Max:	150 W
Switching Energy:	-
Input Type:	Logic
Gate Charge:	15 nC
Td (on/off) @ 25°C:	-/4.7µs
Test Condition:	300V, 1kOhm, 5V
Reverse Recovery Time (trr):	-
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-263-7, D²Pak (6 Leads + Tab), TO-263CB
Supplier Device Package:	D²PAK-6

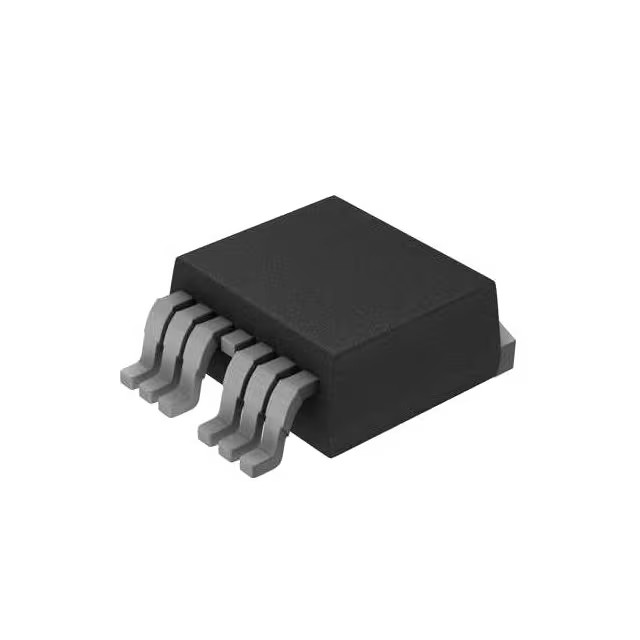

Fairchild Semiconductor FGB3040CS
