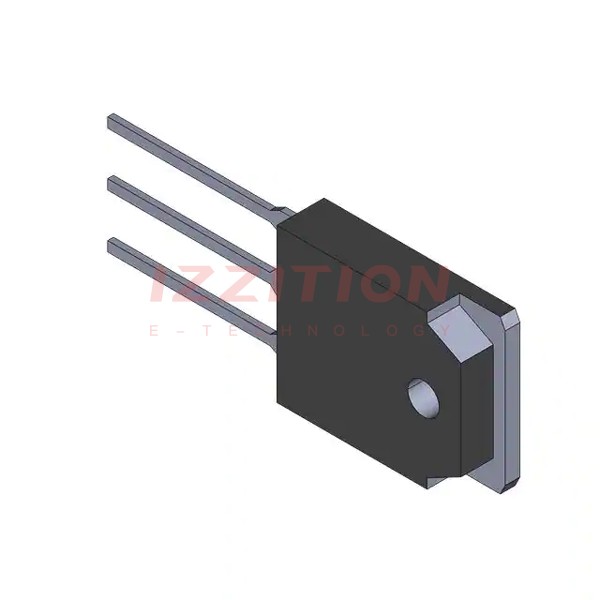

| Part Number | FGA30T65SHD | FGA50T65SHD | FGA40T65SHD |
|---|---|---|---|
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Active | Last Time Buy | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 60 A | 100 A | 80 A |
| Current - Collector Pulsed (Icm) | 90 A | 150 A | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 30A | 2.1V @ 15V, 50A | 2.1V @ 15V, 40A |
| Power - Max | 238 W | 319 W | 268 W |
| Switching Energy | 598µJ (on), 167µJ (off) | 1.28mJ (on), 384µJ (off) | 1.01mJ (on), 297µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 54.7 nC | 87 nC | 72.2 nC |
| Td (on/off) @ 25°C | 14.4ns/52.8ns | 22.4ns/73.6ns | 19.2ns/65.6ns |
| Test Condition | 400V, 30A, 6Ohm, 15V | 400V, 50A, 6Ohm, 15V | 400V, 40A, 6Ohm, 15V |
| Reverse Recovery Time (trr) | 31.8 ns | 34.6 ns | 31.8 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3PN | TO-3PN | TO-3PN |
