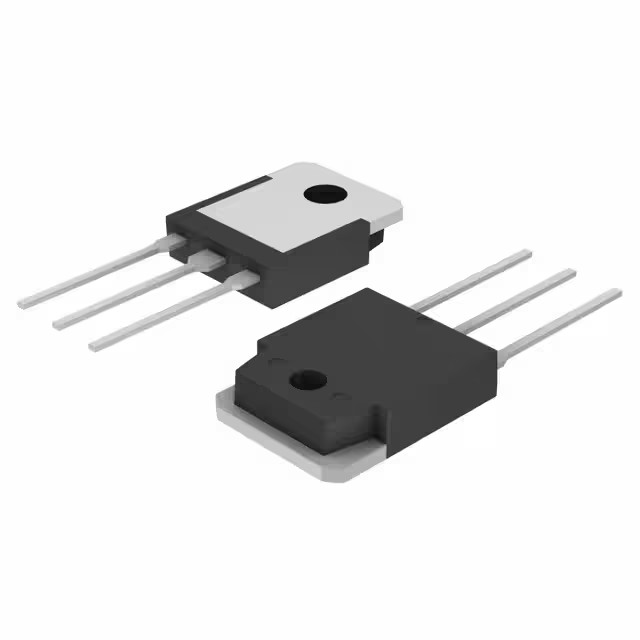

| Part Number | FGA3060ADF | FGA4060ADF |
|---|---|---|
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 60 A | 80 A |
| Current - Collector Pulsed (Icm) | 90 A | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 30A | 2.3V @ 15V, 40A |
| Power - Max | 176 W | 238 W |
| Switching Energy | 960µJ (on), 165µJ (off) | 1.37mJ (on), 250µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 37.4 nC | 55.5 nC |
| Td (on/off) @ 25°C | 12ns/42.4ns | 16.8ns/54.4ns |
| Test Condition | 400V, 30A, 6Ohm, 15V | 400V, 40A, 6Ohm, 15V |
| Reverse Recovery Time (trr) | 26 ns | 26 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3PN | TO-3PN |
